IC200CHS015

★ ★ ★ ★ ★ Rated 4.5/5 Based on 11 ratings.

Rate your purchase of the IC200CHS015
IC200CHS015 I/O interposing spring style IC200C IC200CH IC200CHS PDFsupply also repairs GE IP FANUC

SKU 2173103  UPC 0735573473677

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

Request a Quote for IC200CHS015

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

New

$121

12 In Stock

✓  2 Year PDF Supply Warranty

*Need a Specific Revision?

Ships .

New Surplus

$77

Save $44

1 In Stock

✓  3 Year PDF Supply Warranty

*What is New Surplus?

Ships .

Surplus New

$67

Save $54

1 In Stock

✓  3 Year PDF Supply Warranty

*What is Surplus New?

Ships .

Reman

$29

Save $92

6 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Other Available Revisions for the IC200CHS015 IC200CHS015AIC200CHS015BIC200CHS015CIC200CHS015DIC200CHS015EIC200CHS015FIC200CHS015GIC200CHS015HIC200CHS015IIC200CHS015JIC200CHS015KIC200CHS015LIC200CHS015-LTIC200CHS015MIC200CHS015NIC200CHS015OIC200CHS015PIC200CHS015QIC200CHS015RIC200CHS015SIC200CHS015TIC200CHS015UIC200CHS015VIC200CHS015WIC200CHS015XIC200CHS015YIC200CHS015Z

Common misspellings:
  • 1C200CHS015
  • IC2o0CHS015
  • IC20oCHS015
  • IC200CHSo15
  • IC200CHS0l5
  • IC200CHS015

Product Description

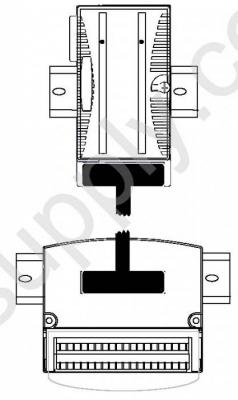

The IC200CHS015 is a Spring-Style Interposing I/O Terminal that provides an interface to a Connector-Style I/O Carrier to field wiring. It is manufactured by GE Fanuc for the Versamax series. The IC200CHS015 comes with a connector that is used to attach a cable from the connector-style I/O carrier and 36 spring-clamp style terminals.

This unit features a transparent protective hinged door that covers the wiring terminals. Each I/O module is provided with a foldable board that can be inserted in this door. One or more auxiliary I/O terminal strips can be added to provide extra field wiring connections if needed. Auxiliary I/O terminal strips insert directly into the lower edge of the IC200CHS015.

During installation, the user can opt to either mount the interposing I/O terminals on the same DIN rail as the connector-style I/O carrier or on a separate DIN rail. Interposing I/O terminals should be mounted on specialized panels for those particular applications that require maximum resistance to mechanical vibration and shock. Steel DIN rail is recommended. The DIN rail used to install the IC200CHS015 must be electrically grounded to provide electromagnetic compatibility (EMC) protection. The rail must have a conductive corrosion resistant finish, preferably one that is not painted. For vibration resistance, the DIN rail should be installed on a panel using screws spaced approximately 6 inches (5.24 cm) apart. It is also advisable to install DIN-rail clamps on both ends of the station to ensure correct positioning.
