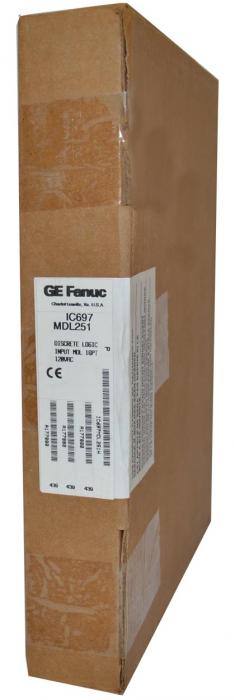

IC697MDL251

★ ★ ★ ★ ★ Rated 2.6/5 Based on 5 ratings.

Rate your purchase of the IC697MDL251

SKU 2173338  UPC 0974988978173

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

Request a Quote for IC697MDL251

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

New

$855

55 In Stock

✓  2 Year PDF Supply Warranty

*Need a Specific Revision?

Ships .

New Surplus

$253

Save $602

8 In Stock

✓  3 Year PDF Supply Warranty

*What is New Surplus?

Ships .

Surplus New

$241

Save $614

1 In Stock

✓  3 Year PDF Supply Warranty

*What is Surplus New?

Ships .

Reman

$200

Save $655

16 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Other Available Revisions for the IC697MDL251 IC697MDL251AIC697MDL251BIC697MDL251CIC697MDL251-CAIC697MDL251DIC697MDL251EIC697MDL251FIC697MDL251GIC697MDL251HIC697MDL251IIC697MDL251JIC697MDL251KIC697MDL251LIC697MDL251-LTIC697MDL251MIC697MDL251NIC697MDL251OIC697MDL251PIC697MDL251-RR

Common misspellings:
  • 1C697MDL251
  • IC697MD1251
  • IC697MDL25l
  • IC697MDL251

Product Description


The IC697MDL251 Input Module is designed by GE Fanuc for the series 90-70. The IC697MDL251 module features 16 points, consisting of four isolated groups of four points each. Each group can be used on a different phase of the AC supply due to the groups’ isolation. The IC697MDL251 module is automatically programmed to guarantee replacement with a comparable type in the field. The 16-point module is compatible with a range of input devices that includes pushbuttons, limit and selector switches, and 2- and 3-wire proximity switches. There is a requirement of .35 amps via the 5-volt bus located on the backplane.

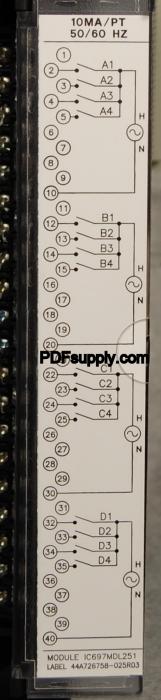

Each IC697MDL251 module is equipped with a mechanical key. The key stops any unintended switch of one module for another module in a specified slot. In case of a need to change a module’s location after the key latching process, the key can be removed by pushing it upward to unhook while removing it off the rail. Once the desired location is determined, the key and module can then be reinserted. Wiring for the IC697MDL251 module requires a wire from the power source to the input terminal for each of the four groups. Wire sizes #14 through #22 are acceptable for the detachable field wiring terminal board. The bundle of wires is secured to the terminal board by a cable tie that passes through a cleat, located in the lower corner of the board. When removing the board, power must be off.

Technical Specifications

Rated Voltage: 120 volt AC
Number of Inputs:   16 Inputs (4 Isolated groups of 4)
Input Current: 10 mA
Current Required: 0.35 Amps
Freq: 60 Hz
DC Power: No



Technical Information

Specifications



Rated Voltage:

Inputsper Module:

120 VAC, 47 to 63 Hz Sinusoidal

16 (four groups of four inputs each)

Isolation:

1500 volts RMS - any input to backplane

500 volts RMS between input groups

InputCurrent:

10mA (typical) at rated voltage (reactive)

InputCharacteristics-



On–state Voltage:

75 to 132 volts AC, 47 to 63 Hz Sinusoidal

Off–state Voltage:

0 to 25 volts AC, 47 to 63 Hz Sinusoidal

On–state Current:

6mAto15mA

Off–state Current:

0 to 3mA (2.2 minimum at 25V input)

Filter Delay Time:

20mstypical

Current Required from 5VDCbackplanebus:

0.35amps

VME

System designed to support the VME standard C.1

t Refer to GFK-0867B, or later for product standards and general specifications. For installations requiring compliance to more stringent requirements (for example, FCC or European Union Directives), refer to Installation Requirements for Conformance to Standards.



Table  2.  Ordering Information



Description

Catalog Number

Input Module: 120 Volt AC, 16 Points

IC697MDL251

Note: For Conformal Coat option, or Low Temperature Testing option please consult the factory for price and availability.







































41-6 Series 90 -70  Programmable Controller Data Sheet Manual GFK-0600F

Troubleshooting

Troubleshooting IC697MDL251

Troubleshooting information is available on IC697MDL251's website page; it also includes a datasheet user-manual and a wiring diagram.


Repair your IC697MDL251

PDF Supply can repair your IC697MDL251 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.

Customer Questions and Answers

  • Question:  What is an IC697MDL251?  Answer:  The IC697MDL251 is an 120 Volt AC, 16-Point Input module of the GE Fanuc Series 90-70. This module provides 4 isolated groups of 4 points each.
  • Question:  The 4 isolated groups of 4 input points allow what to happen?  Answer:  Because they are isolated, it allows for each group of 4 points to be used on a different phase of the AC supply.
  • Question:  What are the features of IC697MDL251?  Answer:
    • 16 points- 4 isolated groups of 4 points
    • 20 ms input filter
    • proximity switch compatible
  • Question:  With what are the input characteristics compatible?  Answer:  They are compatible with a wide range of available proximity switches.
  • Question:  What do the LED indicators (located at the top of the module) tell you?  Answer:  They inform you of the status of each point on the logic (PLC) side of the circuit.
  • Question:  Is configuration of I/O references available on IC697MDL251?  Answer:  Yes, they are configurable without the use of jumpers or DIP switches.
  • Question:  Configuration of IC697MDL251 is done through what?  Answer:  Configuration can be completed through the configuration function of the MS-DOS or Windows programming software.
  • What should I do in the event my IC697MDL251 is not working properly?  Answer:  Your IC697MDL251 may be in need of repair.

For more information on the IC697MDL251 120 Volt AC, 16-Point Input Module of the GE Fanuc 90-70 Series, please see the Datasheet User-Manual.
