GE / IP FANUC Series 90/30 In Stock
IC697ALG320
SKU 2171068 UPC 0799705795181
All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.
PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.
Other Available Revisions for the IC697ALG320 IC697ALG320AIC697ALG320BIC697ALG320CIC697ALG320-CAIC697ALG320DIC697ALG320EIC697ALG320FIC697ALG320GIC697ALG320HIC697ALG320JIC697ALG320LIC697ALG320-LTIC697ALG320-RR
Common misspellings:
- 1C697ALG320
- IC697A1G320
- IC697ALG32o
- IC697ALG320
Product Description
The IC697ALG320 is a high-level analog output module and is fully compatible with GE Series 90-30 modules. Voltage and current outputs are on a single module, and the output module has four individually configured outputs for either current or voltage. Additionally, the module provides bipolar or unipolar outputs. The IC697ALG320 analog output system provides 0 to 22.5 milliamp current loop signals with individual user scaling on each output channel. This particular output system has a fast update rate and requires no jumpers or DIP switches for configuration. It is also factory calibrated with data stored in the non-volatile EEPROM memory. Configuration of the IC697ALG is simple using MS-DOS or Windows programming software.
The high level analog output for the PLC accepts digital data from the CPU or other controllers by accessing the PLC backplane. The output is then converted by a D/A converter to analog outputs up to ten volts. The basic converter offers 16 bits of resolution with 14 bit monotonicity. Additionally, the outputs are isolated from the backplane so they are protected against steady state or transient overvoltage conditions. While it is expected for this analog system to have output loads that will be floating or tied to the same potential, it is designed to allow up to 0.5 VDC compliance voltage difference between outputs. This prevents ground loop currents or errors from happening. Additionally, outputs will operate properly in the presence of a large amount of high frequency noise if needed.

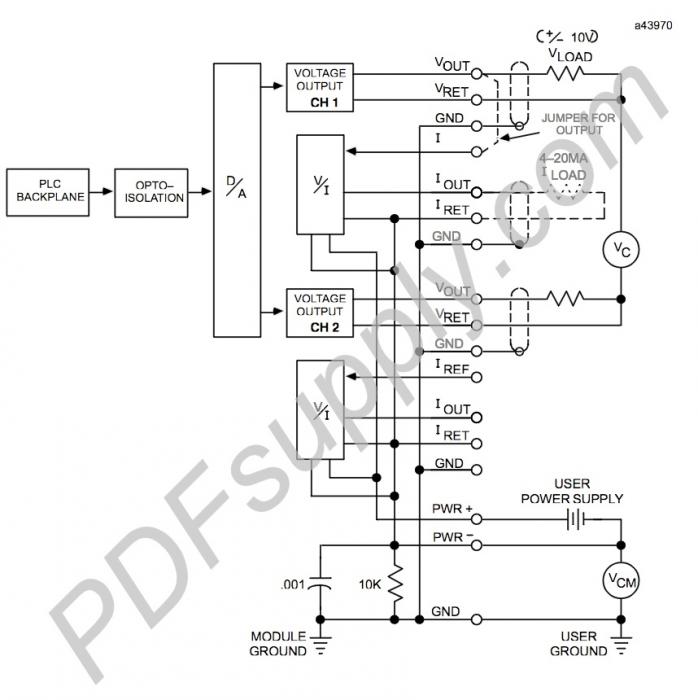

To connect the IC697ALG320 module from user devices, use screw terminals on the removable 40 terminal connector block that is mounted on the front of the module. All field connections should be wired to the I/O terminal board with good grade, twisted shielded instrumentation cable.
Technical Specifications
| Voltage Output Range: | -10 to +10 volts |
| Current Output Range: | 0.0 to 22.2 mA (4 to 20 mA default) |
| Calibration: | Factory set at 10 volts +/- 2mV |
| No of Outputs: | 4 outputs |
| Module Type: | Analoag Output Module |
| Power: | + 5 volts@ 1.66A, 150mA of DC |
Technical Information
Specifications
|
Output Ranges: |
Voltage: –10 volts to +10 volts (default) Current: 0.0 mA to 22.5 mA (4 to 20 mA default) |
|
Resolution: |
16 bit with 14 bit monotonicity 312.5 microvolts per LSB step on voltage 0.5 microamps per LSB step on 4 to 20 mA No missing codes over 16 bits on voltage. No missing codes over 15 bits on current. NOTE: User scaling may introduce degraded granularity in output voltage depending upon the scaling factors used. |
|
Accuracy: Calibration Fieldcalibrationnotpossible MaximumErrors Linearity TemperatureCoefficient |
Voltage: Factory set at full scale = 10 volts Ç2.5millivolts. Current: Factory set at 4.0 mA Ç5 ïA and 20 mA Ç 5 ïA. Full Scale, with 24.0 VDC field side voltage. Calibratedat factory with calibration data stored in EEPROM memory. at 25oC (77oF) Ç 0.02% of full scale over entire negative to positive range. Voltage: Ç 25 PPM per oC typical Current: Ç 50 PPM per oC typical |
|
OutputLoading: Voltage:
Current t: |
R: minimum = 2000 ohms C: maximum = 1000 picofarads R: up to 800 ohms C: maximum = 1.0 microfarad L: maximum = 250 millihenrys |
|
t The current output should be monitored for stability with step changes using inductive loads. There will be combinations of R, L, and C that will not be stable and will require additional capacitance on the current output terminals to maintain output stability with inductive loads (as shown in the followingfigure). |
|
|
ShortCircuit: |
Voltage and current outputs will handle a continuous short circuit without harm and will return to the proper output (output when shortoccurred) when the short is removed. |
|
ConversionRate: |
Alloutputsare updated sequentiallyapproximatelyevery 2.0 milliseconds (maximum) for all 4 channels. |
Troubleshooting
Troubleshooting IC697ALG320
Troubleshooting information is available on IC697ALG320's website page; it also includes a datasheet user-manual and a wiring diagram.
Repair your IC697ALG320
PDF Supply can repair your IC697ALG320 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.
Customer Questions and Answers
- Question: What is an IC697ALG320? Answer: The IC697ALG320 is an Analog Output module from the GE Fanuc 90-70 Series.
- Question: What should I do in Proficy Machine Edition to start? Answer: You should set up the configuration of the physical information you see on the module(s) into the software. Then, you should set it up to read voltage. You want to get the processor into run mode.
- Question: What are some of the features on IC697ALG320? Answer:
- High level analog voltage and current outputs on one module
- Output module has 4 outputs individually configurable for voltage or current
- Provides unipolar and bipolar analog voltage outputs up to C 10 volts full scale
- Provides 0 to 22.5 milliamp current loop signals
- Individual user scaling on each output channel
- Fast update rate
- No jumpers or DIP switches needed for configuration
- Calibrated at factory with factory calibration data stored in non-volatile EEPROM memory
- Question: What software should I use for the configuration of IC697ALG320? Answer: IC697ALG320 has easy configuration through using the configuration function of the MS-DOS or Windows programming software running on Windows 95 or Windows NT over Ethernet TCP/IP or through the SNP port.
- Question: Where is the programming software configuration function installed? Answer: It is installed on the programming device.
- Question: What can the programming device be? Answer: It can be an IBM XT, ATPS/2, or a compatible Personal Computer.
- Question: What is my next step if there is something wrong with my IC697ALG320? Answer: You can contact us to see if your IC697ALG320 needs to be repaired.
For more information on the IC697ALG320 Analog Output Module of the GE Fanuc 90-70 Series, please see the Datasheet User-Manual.
