IC698CHS117

★ ★ ★ ★ ★ Rated 4.2/5 Based on 7 ratings.

Rate your purchase of the IC698CHS117
IC698CHS117 RX7i 17Slot Rack Front Mount IC698C IC698CH IC698CHS PDFsupply also repairs GE IP FANUC

SKU 2172127  UPC 0353810730071

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$852

4 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$682

Save $170

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the IC698CHS117 IC698CHS117AIC698CHS117BIC698CHS117CIC698CHS117DIC698CHS117EIC698CHS117FIC698CHS117GIC698CHS117HIC698CHS117IIC698CHS117JIC698CHS117KIC698CHS117LIC698CHS117MIC698CHS117NIC698CHS117OIC698CHS117PIC698CHS117QIC698CHS117RIC698CHS117SIC698CHS117TIC698CHS117UIC698CHS117VIC698CHS117WIC698CHS117XIC698CHS117YIC698CHS117Z

Common misspellings:
  • 1C698CHS117
  • IC69bCHS117
  • IC698CHSl17
  • IC698CHS1l7
  • IC698CHS117

Product Description

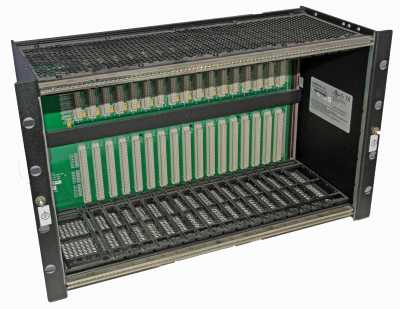

The IC698CHS117 is a Standard PACSystems 17-Slot Wall (Panel) Mount Rack from the GE Fanuc RX7i Series. The rack can be used for all RX7i CPU and I/O configurations, Series 90-70 I/O and VME modules. See specifications for this unit below.

Technical Specifications

Module Type: Standard Rack
Mounting Location:    Front
Number of Slots: 15 Single Width, 8 Double Width
Rack Slot Size: 0.8 inch
Dimensions: 11.15 x 19.0 x 7.5 in. (H x W x D)
Power Supply:    RX7i Power Supply in Slot 0



Technical Information



Number of Slots:
Slots 1 through 17 are 0.8" (20.3mm) wide. (The CPU is installed in slot 1.)
Slot 0 (power supply slot) is 2.4" (61.0mm) wide.
Maximum Current (from RX7i power supplies)
100 watt supply: +5V
+12V
-12V
350 watt supply: +5V
+12V
-12V

20 amps Total output power –100W 2 amps
1 amps
60 amps Total output power – 350W 12 amps
4 amps
I/O References
User configurable with programming/configuration software
Dimensions
Height        Width         Depth               (Note that all Series 90-70 11.15"      19.00"        7.5"           modules extend 1.7" (43 mm) 283mm 483mm 190mm beyond front of rack.)
VME
System designed to support VME64
* For environmental specifications and compliance to standards (for example, FCC or European Union Directives), refer to Appendix A of the PACSystems RX7I Installation Manual, GFK-2223.


Troubleshooting

Troubleshooting IC698CHS117

Troubleshooting information is available on IC698CHS117's website page; it also includes a datasheet user-manual and a wiring diagram.

Repair your IC698CHS117

PDF Supply can repair your IC698CHS117 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.





Customer Questions and Answers

  • Question:  What is an IC698CHS117?  Answer:  The IC698CHS117 is a Standard PACSystems 17-Slot Wall (Panel) Mount Rack from the GE Fanuc RX7i Series.
  • Question:  How many I/O slots does IC698CHS117 have?  Answer:  15 Single Width or 8 Double Width (plus one for Power Supply)
  • Question:  What must Slot 0 be occupied by in an IC698CHS117?  Answer:  The leftmost slot (Slot 0) must be occupied by an RX7i Power Supply.
  • Question:  What must Slot 1 be occupied by in an IC698CHS117?  Answer:  The Slot 1 position must be occupied by an RX7i CPU, however, the IC698CPE010/020 and IC698CRE020 CPUs with Ethernet daughter card are double-width modules and use slots 1 and 2.
  • Question:  What are some of the additional features of this rack?  Answer:
    • Provides slot sensing for rack-type I/O modules
    • Provides automatic daisy chaining of interrupt acknowledge and bus grant signals so no blank slot jumpers are required
    • Provides J2 backplane connectors to allow high-speed VME transfers of up to 64 data bits per cycle
    • Accepts plug-in RX7i power supples
    • Supports higher wattage power supply for high-current configurations
    • Supports an optional cooling fan assembly (required for IC698CPE020/CRE020)
  • Question:  What should I do if my IC698CHS117 fails?  Answer:  Your IC698CHS117 may need repair.

For more information on the IC698CHS117 Standard PACSystems 17-Slot Wall (Panel) Mount Rack of the GE Fanuc RX7i Series, please see the Datasheet User-Manual.





Description

Catalog Number

Rack - 17 slots, rear mount

IC698CHS017

Rack - 17 slots, front mount

IC698CHS117

Rack Fan Assembly (required for CPE020/CRE020, PSA350), 120 VAC

IC697ACC721

Rack Fan Assembly (required for CPE020/CRE020, PSA350), 240 VAC

IC697ACC724

Rack Fan Assembly (required for CPE020/CRE020, PSA350), 24 VDC

IC697ACC744

Gasketed filler faceplate, single-width

IC698ACC735

Gasketed filler faceplate, double-width

IC698ACC720

Note: For Conformal Coat option, or Low Temperature Testing option please consult the factory for price and availability.
