IC698CHS017

★ ★ ★ ★ ★ Rated 4.6/5 Based on 15 ratings.

Rate your purchase of the IC698CHS017

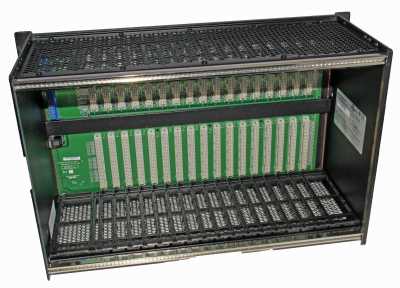

IC698CHS017 RX7i 17 Slot Rack Wall (Rear) Mount IC698CH IC698CH IC698CHS PDFsupply also repairs GE I

SKU 2175350  UPC 0983473245195

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$1341

28 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$1073

Save $268

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the IC698CHS017 IC698CHS017AIC698CHS017BIC698CHS017CIC698CHS017DIC698CHS017EIC698CHS017FIC698CHS017GIC698CHS017HIC698CHS017IIC698CHS017JIC698CHS017KIC698CHS017LIC698CHS017MIC698CHS017NIC698CHS017OIC698CHS017PIC698CHS017QIC698CHS017RIC698CHS017SIC698CHS017TIC698CHS017UIC698CHS017VIC698CHS017WIC698CHS017XIC698CHS017YIC698CHS017Z

Common misspellings:
  • 1C698CHS017
  • IC69bCHS017
  • IC698CHSo17
  • IC698CHS0l7
  • IC698CHS017

Technical Specifications for IC698CHS017

ManufacturerGE Fanuc
SeriesRX7i PACSystems
Part NumberIC698CHS017
Product TypeModule Rack
VME SupportVME64
Maximum Current for a 100-Watt Supply20 Amps
Maximum Current for a 350-Watt Supply60 Amps
Dimensions281.9 x 482.5 x 190.5 millimeters (11.1 x 19 x 7.5 inches)
Power SupplyRX7i power supply (slot 0)
Rack Slot Width20.3 millimeters (0.8 inches)

Product Description


The IC698CHS017 is a 17-slot, front and rear mounted rack capable of supporting Series 90-70, VME, and RX7i modules. The module connectors on the rack backplane are spaced 0.8 inches (20.3 mm) apart and are compatible with both single width and double width modules. Rack slot zero holds the unit’s power supply, and rack slot one holds the unit’s CPU. All other slots are available for any mixture of modules.



The IC698CHS017 is considered an “open equipment” rack; therefore, it must be installed in at least an IP54 protection encasement. This rack is 11.15 inches tall (283 mm), 19 inches wide (483 mm), and 7.5 inches deep (190 mm). Nine inches (23 cm) of space is required to install a fan between racks. Note: A cooling fan is required if certain modules are installed in the rack, and each fan is designed for a different power source.



Jumpers and DIP switches are not needed for addressing modules; instead, the rack supports slot sensing for I/O modules. Input/output module point referencing is accomplished via CIMPLICITY Machine Edition Logic Developer-PLC software. Interrupt acknowledge signals as well as bus grant signals are automatically connected together in a daisy chain configuration. RX7i AC power supplies are supported by the IC698CHS017 with the ability to sustain even higher currents. J2 connectors on the rack backplane support 64 bits per cycle VME transfer speeds.



RX7i and Series 90-70 modules have different options for shield grounding. For RX7i devices, the metal faceplates of each module should be firmly attached to the encasement. For Series 90-70 modules, a built-in ground clip will make contact with the encasement when installed. To connect the rack to the ground, use an AWG #12 (3.33 mm^2) wire with a nut and star washer to connect the side-mounted ground studs to the earth ground.

Technical Specifications

Module Type: Standard Rack
Mounting Location:    Rear
Number of Slots: 15 Single Width, 8 Double Width
Rack Slot Size: 0.8 inch
Dimensions: 11.15 x 19.0 x 7.5 in. (H x W x D)
Power Supply:    RX7i Power Supply in Slot 0



The product code IC698CHS017 is the product code for one of the racks from the GE Fanuc RX7i PACSystems series. This rack is designed and manufactured by GE Fanuc and it comes in a standard package. The IC698CHS017 rack unit is located at the rear side of the PLC it is part of and it has 17 slots for modules. The slot width rating of the rack is 15 slots for a single formation of modules and 8 slots for a double formation of modules. Additionally, the rack is compatible with Series 90-70 and VME modules. The rack can be used with systems providing support for VME64 and it is used with a power supply installed in slot 0. The width of slots 1 to 17 are 20.3 millimeters (0.8 inches) and it should be noted that the CPU unit for the PLC is installed in slot 1 of the rack.

The IC698CHS017 rack has a maximum current rating of 20 Amps for the 100-Watt power supply (at +5 Volts, +12 Volts, or -12 Volts nominal) and a maximum current rating of 60 Amps for the 350-Watt power supply (at +5 Volts, +12 Volts, or -12 Volts nominal). It should be noted that the inputs and outputs of the RX7i systems are configurable through the programming/configuration software. GE Fanuc provides variety of features through software such as the CIMPLICITY Machine Edition Logic Developer for its PLCs and their components. The IC698CHS017 rack has a height of 281.9 millimeters (11.1 inches), a width of 482.5 millimeters (19 inches), and a depth of 190.5 millimeters (7.5 inches). This rack is compatible with both single and double-width industrial modules and it requires a minimum protection level of IP 54.

Technical Information



Number of Slots:

Slots 1 through 17 are 0.8" (20.3mm) wide. (The CPU is installed in slot 1.)

Slot 0 (power supply slot) is 2.4" (61.0mm) wide.

Maximum Current (from RX7i power supplies)

100 watt supply: +5V

+12V

-12V

350 watt supply: +5V

+12V

-12V



20 amps Total output power –100W 2 amps

1 amps

60 amps Total output power – 350W 12 amps

4 amps

I/O References

User configurable with programming/configuration software

Dimensions

Height        Width         Depth               (Note that all Series 90-70 11.15"      19.00"        7.5"           modules extend 1.7" (43 mm) 283mm 483mm 190mm beyond front of rack.)

VME

System designed to support VME64

* For environmental specifications and compliance to standards (for example, FCC or European Union Directives), refer to Appendix A of the PACSystems RX7I Installation Manual, GFK-2223.



Troubleshooting

Troubleshooting IC698CHS017

Troubleshooting information is available on IC698CHS017's website page; it also includes a datasheet user-manual and a wiring diagram.

Repair your IC698CHS017

PDF Supply can repair your IC698CHS017 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.





Customer Questions and Answers

  • Question:  What is an IC698CHS017?  Answer:  The IC698CHS017 is a Standard PACSystems 17-Slot Wall (Rear) Mount Rack from the GE Fanuc RX7i Series.
  • Question:  How many I/O slots does IC698CHS017 have?  Answer:  15 Single Width or 8 Double Width (plus one for Power Supply)
  • Question:  What must Slot 0 be occupied by in an IC698CHS017?  Answer:  The leftmost slot (Slot 0) must be occupied by an RX7i Power Supply.
  • Question:  What must Slot 1 be occupied by in an IC698CHS017?  Answer:  The Slot 1 position must be occupied by an RX7i CPU, however, the IC698CPE010/020 and IC698CRE020 CPUs with Ethernet daughter card are double-width modules and use slots 1 and 2.
  • Question:  What are some of the additional features of this rack?  Answer:
    • Provides slot sensing for rack-type I/O modules
    • Provides automatic daisy chaining of interrupt acknowledge and bus grant signals so no blank slot jumpers are required
    • Provides J2 backplane connectors to allow high-speed VME transfers of up to 64 data bits per cycle
    • Accepts plug-in RX7i power supples
    • Supports higher wattage power supply for high-current configurations
    • Supports an optional cooling fan assembly (required for IC698CPE020/CRE020)
  • Question:  What should I do if my IC698CHS017 fails?  Answer:  Your IC698CHS017 may need repair.

For more information on the IC698CHS017 Standard PACSystems 17-Slot Wall (Rear) Mount Rack of the GE Fanuc RX7i Series, please see the Datasheet User-Manual.




Description

Catalog Number

Rack - 17 slots, rear mount

IC698CHS017

Rack - 17 slots, front mount

IC698CHS117

Rack Fan Assembly (required for CPE020/CRE020, PSA350), 120 VAC

IC697ACC721

Rack Fan Assembly (required for CPE020/CRE020, PSA350), 240 VAC

IC697ACC724

Rack Fan Assembly (required for CPE020/CRE020, PSA350), 24 VDC

IC697ACC744

Gasketed filler faceplate, single-width

IC698ACC735

Gasketed filler faceplate, double-width

IC698ACC720

Note: For Conformal Coat option, or Low Temperature Testing option please consult the factory for price and availability.
