IC660BBD021

★ ★ ★ ★ ★ Rated 4.5/5 Based on 8 ratings.

Rate your purchase of the IC660BBD021

SKU 2173039  UPC 0525277484525

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

Request a Quote for IC660BBD021

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

New

$4588

3 In Stock

✓  2 Year PDF Supply Warranty

*Need a Specific Revision?

Ships .

New Surplus

$1748

Save $2,840

9 In Stock

✓  3 Year PDF Supply Warranty

*What is New Surplus?

Ships .

Reman

$437

Save $4,151

193 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$350

Save $4,238

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the IC660BBD021 IC660BBD021AIC660BBD021BIC660BBD021CIC660BBD021-CAIC660BBD021DIC660BBD021EIC660BBD021FIC660BBD021HIC660BBD021KIC660BBD021LIC660BBD021MIC660BBD021NIC660BBD021PIC660BBD021QIC660BBD021RIC660BBD021-RRIC660BBD021SIC660BBD021TIC660BBD021UIC660BBD021VIC660BBD021WIC660BBD021XIC660BBD021YIC660BBD021-Y1

Common misspellings:
  • 1C660BBD021
  • IC66oBBD021
  • IC6608BD021
  • IC660B8D021
  • IC660BBDo21
  • IC660BBD02l
  • IC660BBD021

Product Description

The IC660BBD021 is a 24/48 VDC Sink I/O, 16 Circuit, 3 Wire Sensor Compatible Block of GE Fanuc series 90-30 PLCs. It interfaces electromechanical and 3-wire solid sensors. The type of power source this block receives is 24/48 VDC and is provided from field output devices. The block has 16 discrete circuits that can work as inputs, tristate inputs, or outputs. The circuits are powered by the block with no additional supply. The IC660BBD021 has many configurable parameters, including output pulse test, configurable input filter time, output power up defaults, and output hold last state or default. The block is equipped with electronic short circuit and over temperature protection. It can detect a failed switch, open wire in tristate inputs, overload, or no load. Also, protective mechanisms prevent any damage due to overload by shutting down the system.

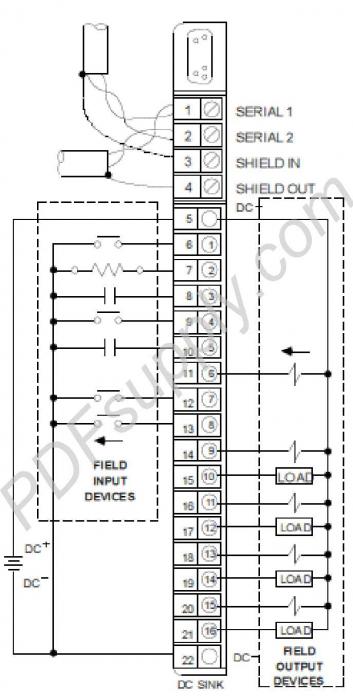

The block should be installed in a protective case in a place with no airborne contaminants and with adequate cooling and air flow. IC660BBD021 needs a grounding system. The 16 circuits of the block use terminals 6 to 21. Those terminals can work as inputs or outputs. Outputs connect to DC- and inputs to DC+ with no need of logic inversion. Using a terminal as a tristate input requires one resistor mounted at the dry contacts of the input device. This ensures open wire diagnostic availability.

When a user decides to disconnect block power, circuit power must be disconnected as well. If power is applied to field terminals, touching the pins is very dangerous and can cause electrical shock. To replace an electronics assembly, a handheld monitor should first be connected. The user must monitor the circuits from the HMM menu and then turn it off and disconnect. The user can now power down the block, remove the electronics assembly, and install the new one. Terminals can be used as inputs or outputs using the + or – side of the terminal board.

Technical Specifications

Rated Voltage: 24/48 VDC
# of Points: 16
Input Range: 18-56 VDC
Load Current: 2 Amp
Operating Voltage: 18-56 VDC
Points per Common:   One group of 16



Technical Information

Specifications

Block Type: CatalogNumbers:

24 / 48VDC16CircuitSourceI / OBlock Terminal Assemblyonly ElectronicsAssemblyonly

24VDC Source 16 Circuit Source I / O Block Terminal Assemblyonly ElectronicsAssemblyonly

24 / 48VDC16CircuitSinkI / OBlock Terminal Assemblyonly ElectronicsAssemblyonly

24VDC 16 Circuit Sink I / OBlock Terminal Assemblyonly

ElectronicsAssemblyonly

16 circuit discrete input and output

IC660BBD020

IC660TSD020

IC660EBD020 (same as block IC660BBD022)

IC660BBD022

IC660TBD022

IC660EBD020 (same as block IC660BBS020)

IC660BBD021

IC660TSD021

IC660EBD021 (same as block IC660BBD023)

IC660BBD023

IC660TBD023

IC660EBD021 (same as block IC660BBD021)

Size (height x width x depth):

8.83” (22.44cm) x 3.50” (8.89cm) x 3.94” (10.00cm)

Weight:

4 lbs. (1.8 kg)

LEDS (block):

Unit OK, I / OEnabled

LEDs (each circuit):

Individual load side indicators

HeatDissipation:

68.8 Watts with 16 outputs on at 2 amps.

Block to Block Isolation:

1500 V

Operatingvoltage:

18–56 VDC (24 / 48 V), 18–30 VDC (24 V)

Ripple (maximum):

10%

Required DC power:

150mAtypical / 300mAmaximum

Power supply dropout time:

10mS

Input Characteristics:

For standard input, voltage relative to (DC–) Input ON, 24 VDC supply

48 VDC supply*

Input OFF, 24 VDC supply 48 VDC supply*

Input processing time (typical) Input impedance (typical) Selectable input filter times Inputdiagnostics



Source Blocks Sink Blocks

16–24 VDC 0–8 VDC

32–48 VDC * 0–16 VDC*

0–7 VDC 17–24 VDC

0–14 VDC* 34–48 VDC*

5.6Kohms (24 / 48V), 1.8Kohms (24V)

1.7mS (plus selectable filter delay)

5–100mS

Open wire, Overtemperature, Failed Switch

OutputCharacteristics:

Output current (steady state)



2 amps per circuit

Maximum inrush current

10 amps up to 10mS

Block output current

15 amps at  35C

Output OFF leakage current

1.0 mA

Maximumswitching frequency

Once per second (high inrush current)

Output turn–on delay (maximum)

1mS

Output voltage drop

2.0 volts maximum at 2 amps inrush

Minimum Recommended Load

50 mA with No Load nabled

Output Diagnostics

Short Circuit, Overload, No Load, Failed Switch, Overtemperature

Environmental:

Operating temperature



0   to   +60C   (32   to  +140F)

Storage temperature

–40   to    +100C   (–40   to   +212F)

Humidity

5 to 95% (non–condensing)

Vibration

5–10Hz 0.2” (5.08mm) displacement, 10–200Hz at 1G

Troubleshooting

Troubleshooting IC660BBD021

Troubleshooting information is available on IC660BBD021's website page; it also includes a datasheet, a user manual, and a wiring diagram.


Repair your IC660BBD021

PDF Supply can repair your IC660BBD021 in 3-5 business days. And PDF Supply stands by all of its repairs with a 1 year customer satisfaction warranty.



Customer Questions and Answers

  • Question:  What is an IC660BBD021?  Answer:  The IC660BBD021 is a 16-Circuit, 24/48 VDC Sink I/O Block. This block is an intelligent, configurable block that can interface to a wide range of discrete DC sensors and actuators. The Sink Blocks receive current from field output devices.
  • Question:  Specifically, with what does IC660BBD021 function?  Answer:  IC660BBD021 functions with 3-wire solid state sensors and electromechanical sensors.
  • Question:  The configuration of each 16 discrete circuits can be as what?  Answer:  They can be configured as an input, a tristate input, or an output.
  • Question:  What is special about the output circuits?  Answer:  The output circuits can be connected right to input circuits without the need of other components or inversion of logic states.
  • Question:  Do I need separate block power supply for IC660BBD021?  Answer:  No, you do not.
  • Question:  Which features of IC660BBD021 can be configured?  Answer:
    • Output Pulse Test capability
    • Selectable Input Filter Time from 10mS to 100mS
    • Output power up defaults
    • Output Hold Last State or default
  • Question:  What are the diagnostic features of this block?  Answer:
    • Electronic short circuit protection
    • Overtemperature protection
    • Failed switch detection
    • Open wire detection for tristate inputs
    • Overload detection and shutdown
    • No-load detection
  • Question:  What is my next step if my IC660BBD021 has failed?  Answer:  Your product may need repair.

For more information on the IC660BBD021 Sink In/Out Block of the GE Fanuc Genius I/O Series, please see the Datasheet User-Manual.

IC660BBD021 is a Phase B GE Genius block and is compatible with all GENIUS supported PLC systems. The earlier version- IC660CBD021 is a Phase A GE Genius Block and is only compatible with Series Six and Series Five PLCs.

The final letter in the part number (ex. IC660BBD021K) indicates the revision. Revision K and later use the newer style electronic housing and therefore need the newer style plastic door and may indicate some compatibility issues with the terminal strip.
