IC600YB941

★ ★ ★ ★ ★ Rated 4.3/5 Based on 12 ratings.

Rate your purchase of the IC600YB941
IC600YB941 In Stock! 0-10Vdc Analog Output Module (4 channels) IC600Y IC600YB PDFsupply also repairs

SKU 2174104  UPC 0849122226932

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$1140

9 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Other Available Revisions for the IC600YB941 IC600YB941AIC600YB941BIC600YB941CIC600YB941DIC600YB941EIC600YB941FIC600YB941GIC600YB941HIC600YB941IIC600YB941JIC600YB941KIC600YB941LIC600YB941MIC600YB941NIC600YB941OIC600YB941PIC600YB941QIC600YB941RIC600YB941-RRIC600YB941SIC600YB941TIC600YB941UIC600YB941VIC600YB941WIC600YB941XIC600YB941YIC600YB941Z

Common misspellings:
  • 1C600YB941
  • IC6o0YB941
  • IC60oYB941
  • IC600Y8941
  • IC600YB9A1
  • IC600YB94l
  • IC600YB941

0-10Vdc Analog Output Module (4 channels) YB941 Series Six Without FacePlate IC600 IC600YB

Technical Information

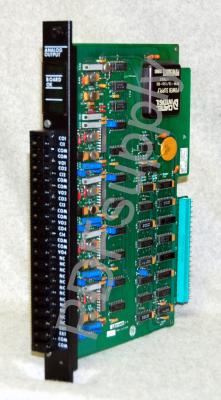

The IC600YB941 circuit board is the circuit board of an analog output module that has been designed by GE Fanuc Automation and included in the GE Series Six product line of programmable logic controllers or PLCs. This specific circuit board is made to be used along with a faceplate, and the board and faceplate together make up the complete analog output module. The complete analog output module comes in different versions that include unipolar, bipolar, and current versions, and this circuit board is used with the unipolar version of the module. The different module versions deliver different types of voltages, and this module operates with a voltage of 0 to 10 Volts. The GE Fanuc Automation IC600YB941 circuit board can deliver between 4 and 20 milliamps of current and while in operation, it can receive up to 12 bits of output data (binary output data).



The GE Fanuc Automation IC600YB941 circuit board is useful in a variety of applications, it comes with 4 output channels per module and it provides a resolution of 1 part in 4096. It is mainly used in process control and motor speed reference applications. The dimensions of this circuit board are 208 x 280 x 31 millimeters. It is recommended to install this circuit board in environments with temperatures that do not exceed 60 degrees Celsius. In hotter environments, the technicians can install ventilation equipment to keep the device safe and functional. The GE Fanuc Automation IC600YB941 circuit board requires a power rating of 5 Volts DC and a current rating of 1.5 Amps that is supplied by the I/O rack’s power supply. There are optional power requirements such as the user-supplied power that is 4 to 20 milliamps of current and that is used by modules only.
