IC600YB908

★ ★ ★ ★ ★ Rated 4.4/5 Based on 11 ratings.

Rate your purchase of the IC600YB908

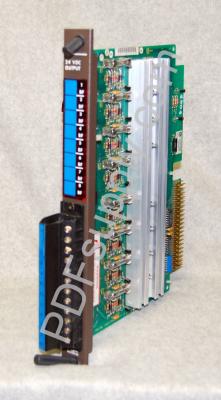

IC600YB908 In Stock! 24Vdc Source Output Module (8 points) IC600Y IC600YB PDFsupply also repairs GE

SKU 2176022  UPC 0761573797499

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$285

35 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Other Available Revisions for the IC600YB908 IC600YB908AIC600YB908BIC600YB908CIC600YB908DIC600YB908EIC600YB908FIC600YB908GIC600YB908HIC600YB908IIC600YB908JIC600YB908KIC600YB908LIC600YB908MIC600YB908NIC600YB908OIC600YB908PIC600YB908QIC600YB908RIC600YB908-RRIC600YB908SIC600YB908TIC600YB908UIC600YB908VIC600YB908WIC600YB908XIC600YB908YIC600YB908Z

Common misspellings:
  • 1C600YB908
  • IC6o0YB908
  • IC60oYB908
  • IC600Y8908
  • IC600YB9o8
  • IC600YB90b
  • IC600YB908

24Vdc Source Output Module (8 points) Series Six Module Without Face Plate IC600Y IC600YB

Technical Information

The GE Fanuc IC600YB908 24 Volts DC source output module provides a GE Series Six programmable logic controller with 8 independent discrete output points as a single accessory module on its backplane. This module will provide a 24 Volts DC signal to activate a field device connected to its terminals, and the current will flow out of the module into that external field device which should be connected to the ground on its end. The GE Fanuc IC600YB908 24 Volts DC source output module has 2 groups of 4 output points each that can be used to send discrete signals such as the ones that are used to control the activation and deactivation of relays, motor starters, solenoid valves, and electromagnets.



Each of the output points of the GE Fanuc IC600YB908 24 Volts DC source output module is optically coupled from the main board to offer complete electrical isolation between the field devices and the Series Six programmable logic controller. The power supply that is needed to feed the GE Fanuc IC600YB908 24 Volts DC source output module should be a 5 Volts DC, 400 milliamps rated power source, and it can be the one that is used to feed the PLC system itself. The steady state current rating is approximately 2 Amps maximum, with an inrush current rating of 7 Amps. The dimensions of the module are relatively small at approximately 8.15 x 11 x 1.2 inches. The operating temperature of the device oscillates between 0 and 60 degrees Celsius, with a humidity range between 5 and 95% (non-condensing).
