IC600YB907

★ ★ ★ ★ ★ Rated 4.4/5 Based on 6 ratings.

Rate your purchase of the IC600YB907

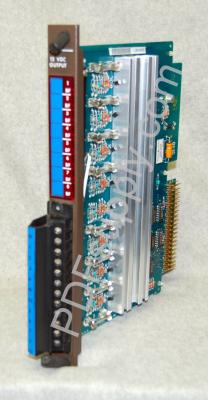

IC600YB907 In Stock! 12Vdc Source Output Module (8 points) IC600Y IC600YB PDFsupply also repairs GE

SKU 2178110  UPC 0468562668197

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$285

1 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Other Available Revisions for the IC600YB907 IC600YB907AIC600YB907BIC600YB907CIC600YB907DIC600YB907EIC600YB907FIC600YB907GIC600YB907HIC600YB907IIC600YB907JIC600YB907KIC600YB907LIC600YB907MIC600YB907NIC600YB907OIC600YB907PIC600YB907QIC600YB907RIC600YB907-RRIC600YB907SIC600YB907TIC600YB907UIC600YB907VIC600YB907WIC600YB907XIC600YB907YIC600YB907Z

Common misspellings:
  • 1C600YB907
  • IC6o0YB907
  • IC60oYB907
  • IC600Y8907
  • IC600YB9o7
  • IC600YB907

12Vdc Source Output Module (8 points) YB907Series Six Module Without Face Plate IC600YB

Technical Information

GE Fanuc designs and builds several types of discrete output modules that enable the GE Model 60 CPUs and the GE Series 6 Programmable Logic Controllers (PLCs) to control the activation and deactivation of different devices, and one of these solid-state output modules is the GE Fanuc IC600YB907 12 Volts DC source output module which enables the PLC to have 8 independent, customizable output points that are able to command external devices according to the desired control algorithm. The GE Fanuc IC600YB907 12 Volts DC source output module provides a positive terminal connection point to the field devices connected into it and the ground terminal point needed for completing the circuit should be provided by the end user's circuitry.



The GE Fanuc IC600YB907 12 Volts DC source output module terminal points are divided into 2 groups of 4 output points each, with common positive power terminal connections and neutral terminal connections. The power source for the module is the same one that is used for the PLC or the Model 60 CPU, which delivers 5 Volts DC with a maximum current rating of 400 milliamps. The steady-state current of the GE Fanuc IC600YB907 12 Volts DC source output module is approximately 2 Amps, with a maximum inrush current of 7 Amps. An important thing to take into account when installing this module is the proper adjustment of the dip switches in the slot that will house the module in the I/O rack. If these switches are not adjusted appropriately, the program in the PLC will not recognize which output points it will need to use for each external field device.
