IC600YB904

★ ★ ★ ★ ★ Rated 4.6/5 Based on 12 ratings.

Rate your purchase of the IC600YB904

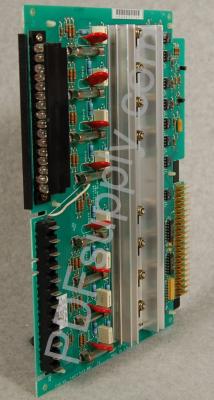

IC600YB904 In Stock! 115Vac Output Module (8 points) IC600Y IC600YB PDFsupply also repairs GE IP FAN

SKU 2171116  UPC 0133300219213

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Surplus New

$910

11 In Stock

✓  3 Year PDF Supply Warranty

*What is Surplus New?

Ships .

Reman

$827

Save $83

116 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Other Available Revisions for the IC600YB904 IC600YB904AIC600YB904BIC600YB904CIC600YB904DIC600YB904EIC600YB904FIC600YB904GIC600YB904HIC600YB904IIC600YB904JIC600YB904KIC600YB904LIC600YB904MIC600YB904NIC600YB904OIC600YB904PIC600YB904QIC600YB904RIC600YB904-RRIC600YB904SIC600YB904TIC600YB904UIC600YB904VIC600YB904WIC600YB904XIC600YB904YIC600YB904Z

Common misspellings:
  • 1C600YB904
  • IC6o0YB904
  • IC60oYB904
  • IC600Y8904
  • IC600YB9o4
  • IC600YB90A
  • IC600YB904

115Vac Output Module (8 points) YB904 Series Six Module Without Face Plate IC600 IC600YB

Technical Information

The IC600YB904 module is an output module that has been designed and manufactured by GE Fanuc. The module is part of GE Series Six and it is built for 115 Volts AC rated power sources. This model does not include a faceplate and it is compatible with programmable logic controllers with the product codes IC600 and IC600YB. The IC600YB904 module has 8 outputs that are arranged in 2 equal groups. The module has protective features that can prevent damages if there is a chain failure in the outputs or if a CPU failure occurs. The module is equipped with neon lights that indicate the state of the outputs and of the fuses for the output circuits.



The IC600YB904 module does not require a lot of rack space with its dimensions so it provides additional room for other components. The IC600YB904 module has an off-state voltage leakage of 1.7 milliamps at the rated voltage range and an on-state voltage drop of 1.5 to 2.5 Volts. This AC output module has an on-state current of 5 milliamps minimum and 2 Amps maximum. The typical delay is 1 millisecond when the unit is turned on and it is less than half a cycle when the unit is turned off. In addition to that, the inrush current is 12 Amps for 33 seconds maximum. The operating conditions include 5 to 95% humidity and a working temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit). The storage temperature range is -20 to 80 degrees Celsius (-4 to 176 degrees Fahrenheit). The dimensions of the circuit for the IC600YB904 module are 208 x 280 x 31 millimeters or 8.15 x 11 x 1.2 inches.
