IC600PM502

★ ★ ★ ★ ★ Rated 4.6/5 Based on 13 ratings.

Rate your purchase of the IC600PM502

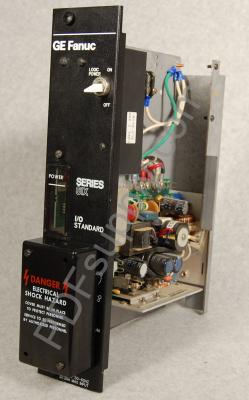

IC600PM502 In Stock! Standard I/O Rack Power Supply, 115-230Vac IC600P IC600PM PDFsupply also repair

SKU 2174333  UPC 0824005297643

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$618

28 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Other Available Revisions for the IC600PM502 IC600PM502AIC600PM502BIC600PM502CIC600PM502DIC600PM502EIC600PM502FIC600PM502GIC600PM502HIC600PM502IIC600PM502JIC600PM502KIC600PM502LIC600PM502MIC600PM502NIC600PM502OIC600PM502PIC600PM502QIC600PM502RIC600PM502-RRIC600PM502SIC600PM502TIC600PM502UIC600PM502VIC600PM502WIC600PM502XIC600PM502YIC600PM502Z

Common misspellings:
  • 1C600PM502
  • IC6o0PM502
  • IC60oPM502
  • IC600PM5o2
  • IC600PM502

Standard I/O Rack Power Supply, 115-230Vac PM502 Power Unit Module PLC IC600P IC600PM

Technical Information

The IC600PM502 power supply is a GE Fanuc standard power supply. The voltage range for this device is between 115 and 230 Volts AC. This power supply generates power for the GE Series Six I/O modules. This open enclosure power supply  powers a module through the backplane. The front panel of the power supply houses an on/off switch that can be used to control the power flow in the module. Along with the switch, an LED indicator is present that illuminates when the switch is turned on. This standard-capacity IC600PM502 power supply provides 5 Volts DC voltage with a maximum current rating of 6.1 Amps. The input power is supplied to the terminal block that is located on the bottom part of the power unit.



The IC600PM502 power supply is designed with DC output terminals on the circuit board along with a power failure signal terminal and ground terminals. The front side of the module has the terminal block through which the power is connected. A power switch/circuit breaker is present in the power rack to protect the power supply from unwanted current and voltage conditions. During the installation of the power supply, the load of the unit should be calculated to prevent overload conditions. The input voltage mode must be established by using a jumper on the terminal block. The IC600PM502 power supply is an indoor unit and it should be kept in a clean area. The environmental temperature should be set between 0 and 60 degrees Celsius with a maximum non-condensing relative humidity rating of 95%. It is able to withstand regular shocks and vibration for both operating and non-operating conditions.
