IC600BF914

★ ★ ★ ★ ★ Rated 4.6/5 Based on 11 ratings.

Rate your purchase of the IC600BF914

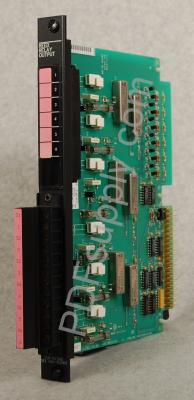

IC600BF914 In Stock! Reed Relay Output Module (6 points) IC600B IC600BF PDFsupply also repairs GE IP

SKU 2173359  UPC 0563323213668

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

New Surplus

$1045

4 In Stock

✓  3 Year PDF Supply Warranty

*What is New Surplus?

Ships .

Surplus New

$561

Save $484

4 In Stock

✓  3 Year PDF Supply Warranty

*What is Surplus New?

Ships .

Reman

$186

Save $859

31 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Other Available Revisions for the IC600BF914 IC600BF914AIC600BF914BIC600BF914CIC600BF914DIC600BF914EIC600BF914FIC600BF914GIC600BF914HIC600BF914IIC600BF914JIC600BF914KIC600BF914LIC600BF914MIC600BF914NIC600BF914OIC600BF914PIC600BF914QIC600BF914RIC600BF914-RRIC600BF914SIC600BF914TIC600BF914UIC600BF914VIC600BF914WIC600BF914XIC600BF914YIC600BF914Z

Common misspellings:
  • 1C600BF914
  • IC6o0BF914
  • IC60oBF914
  • IC6008F914
  • IC600BF9l4
  • IC600BF91A
  • IC600BF914

Reed Relay Output Module (6 points) BF914 Series Six Board with Face Plate IC600B IC600BF

Technical Information

The IC600BF914 Reed Relay Output Module is a compact, electrically-isolated relay output module that has been designed and manufactured by GE Fanuc. It comes with 6 mercury-wetted relays as its outputs. It also has individual fuses and status indicators as protection devices and monitoring aids, respectively. It provides electrical isolation between the controller and the field devices. It also offers a low cost per output point. The IC600BF914 Reed Relay Output Module consumes +5 Volts DC and 750 milliamps of power from the I/O rack power supply. The operating temperature range of the module is from 0 to 60 degrees Celsius and the storage temperature range is from -20 to 80 degrees Celsius.



The IC600BF914 Reed Relay Output Module consists of 6 active LEDs, 6 jumpers, 6 plugs with normally open and normally closed contacts, 3 Amps fuses, and a user terminal block. The users can select the state of the de-energized relay by using jumpers. It also provides a jumper-selectable option for RC protection in order to provide low-level analog signals. Some of the features of the module include NO/NC contact selection, 250 Volts AC/DC, and high-voltage isolation capabilities. The contact ratings of the module include the Form C, N/O, and N/C jumper selectable contacts, 100 VA of power, 2 Amps of rated continuous current, and 0.05 Ohms of maximum contact resistance. During installation, make sure to check the compatibility of the module and the application it is intended for. The IC600BF914 Reed Relay Output Module must be installed in a vertical position for proper functioning. This module is suitable for use with a wide range of AC and DC loads in a variety of applications.
