IC600BF819

★ ★ ★ ★ ★ Rated 4.5/5 Based on 9 ratings.

Rate your purchase of the IC600BF819
IC600BF819 In Stock! Type R Thermocouple Input Module (8 points) IC600BF IC600B PDFsupply also repai

SKU 2171120  UPC 0542718550137

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Other Available Revisions for the IC600BF819 IC600BF819AIC600BF819BIC600BF819CIC600BF819DIC600BF819EIC600BF819FIC600BF819GIC600BF819HIC600BF819IIC600BF819JIC600BF819KIC600BF819LIC600BF819MIC600BF819NIC600BF819OIC600BF819PIC600BF819QIC600BF819RIC600BF819-RRIC600BF819SIC600BF819TIC600BF819UIC600BF819VIC600BF819WIC600BF819XIC600BF819YIC600BF819Z

Common misspellings:
  • 1C600BF819
  • IC6o0BF819
  • IC60oBF819
  • IC6008F819
  • IC600BFb19
  • IC600BF8l9
  • IC600BF819

Type R Thermocouple Input Module (8 points) Series Six Board with Face Plate IC600BF IC600B

Technical Information

The GE Fanuc IC600BF819 thermocouple input module (Type R) is an input module from the GE Series Six I/O module family designed to provide isolated input for the detection of low-level analog signals produced by thermocouple devices. The IC600BF819 thermocouple input module belongs to the GE Series Six thermocouple family, and modules in this series are available in 7 different versions (Type J, Type K+, Type S, Type T, Type B, Type E, and Type R). The IC600BF819 thermocouple input module comes with 2 built-in 4-channel thermocouple conditioners, which can be reassigned for use with any of the 7 thermocouple types. The IC600BF819 thermocouple input module also has a built-in programmable-gain amplifier (with high accuracy) and a 13-bit integrating analog-to-digital converter for low-level conditioning such as isolation, high common-mode rejection, filtering, and low drift amplification conditioning.

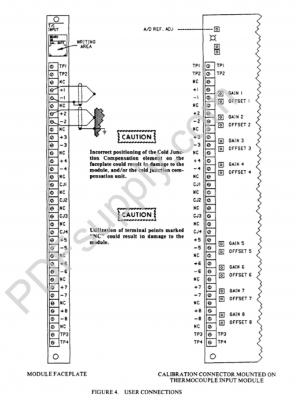

The IC600BF819 thermocouple input module has 8 isolated input circuits to which external cold junction compensation devices or CJCs can be connected. These CJC elements provide cold junction compensation to signals at the terminals, thus eliminating the need for an ice-point reference function. Each input signal is scaled, linearized, and converted to degrees Celsius or degrees Fahrenheit temperature values via an on-board microprocessor, and the temperature values are sent to the input status table of the GE Series Six CPU in either the sign-magnitude or 2’s complement format that are selectable via a jumper. The IC600BF819 thermocouple input module requires 1.7 Amps of maximum backplane power to be supplied by the I/O rack power supply, it has 1000 Volts AC/DC of isolation between the inputs and the Series Six PLC. On the front panel of the module are several DIP switches for setting various module operation settings, and there is an LED light that indicates operation status.
