IC600BF818

★ ★ ★ ★ ★ Rated 4.7/5 Based on 12 ratings.

Rate your purchase of the IC600BF818
IC600BF818 In Stock! Type E Thermocouple Input Module (8 points) IC600BF IC600B PDFsupply also repai

SKU 2176445  UPC 0266550980357

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Other Available Revisions for the IC600BF818 IC600BF818AIC600BF818BIC600BF818CIC600BF818DIC600BF818EIC600BF818FIC600BF818GIC600BF818HIC600BF818IIC600BF818JIC600BF818KIC600BF818LIC600BF818MIC600BF818NIC600BF818OIC600BF818PIC600BF818QIC600BF818RIC600BF818-RRIC600BF818SIC600BF818TIC600BF818UIC600BF818VIC600BF818WIC600BF818XIC600BF818YIC600BF818Z

Common misspellings:
  • 1C600BF818
  • IC6o0BF818
  • IC60oBF818
  • IC6008F818
  • IC600BFb18
  • IC600BF8l8
  • IC600BF81b
  • IC600BF818

Type E Thermocouple Input Module (8 points) Series Six Board with Face Plate IC600BF IC600B

Technical Information

The GE Fanuc IC600BF818 thermocouple input module (Type E) is a temperature-sensitive input module from the GE Series Six RTD and thermocouple module family. The IC600BF818 thermocouple input module provides 8 electrically-isolated inputs for the detection of low-level analog signals from thermocouple devices. The IC600BF818 thermocouple input module has 2 thermocouple conditioners (with 4 channels each) that can be configured for any of the thermocouple types (J, K+, S, T, B, E, or R), and the low-level signal conditioning provided includes +/-1000 Volts DC signal isolation, reasonably high levels of common-mode rejection, filtering, and low drift signal amplification. The IC600BF818 thermocouple input module also has a high accuracy signal amplifier and a 13-bit A/D converter that helps to preserve signal integrity. Each output signal from the A/D converter consists of a 13-bit word (12-bit plus sign), which is equivalent to +/-4096 counts of resolution.

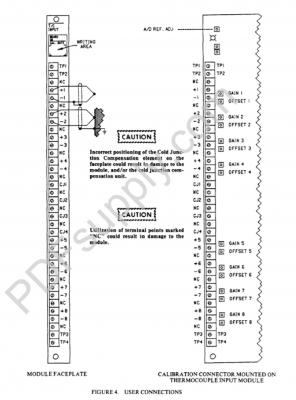

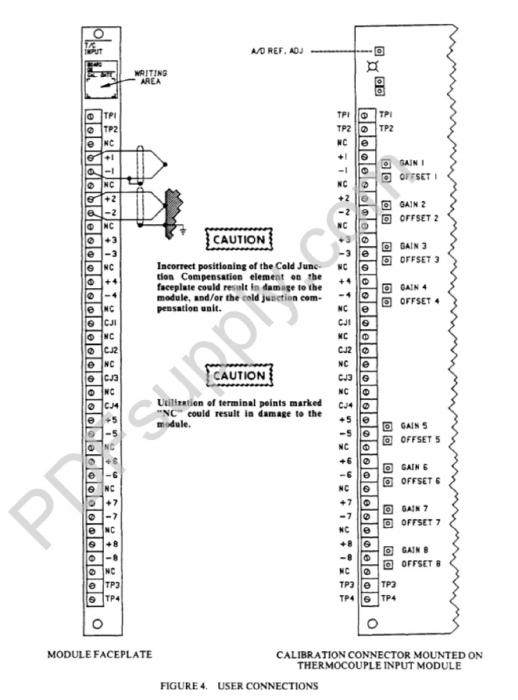

The IC600BF818 thermocouple input module, like all thermocouple module versions, comes with an on-board microprocessor which scales, linearizes, and converts every input signal into either degrees Fahrenheit or degrees Celsius temperature values. These temperature values are then sent alongside the other module’s information to the input status table of the Series Six CPU in either the 2’s complement or sign-magnitude formats by using a jumper selection. The IC600BF818 thermocouple input module has 8 electrically-isolated input circuits for connecting to thermocouple devices and on which external Cold Junction Compensation (CJC) elements can be connected. It draws power requirements from the I/O rack power supply and it is installed on either an I/O rack on a single slot of the GE Model 60 CPU. The IC600BF818 thermocouple input module has several DIP switches for configuring some basic module operation settings, and it comes with LED indicators that show its status.
