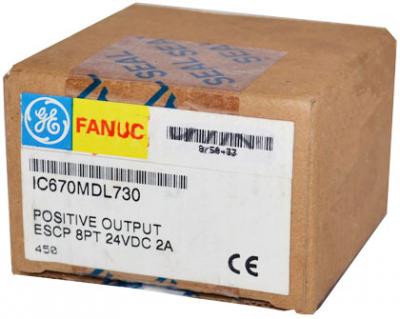

IC670MDL730

★ ★ ★ ★ ★ Rated 4.4/5 Based on 13 ratings.

Rate your purchase of the IC670MDL730

SKU 2175403  UPC 0799705792975

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

New

$175

7 In Stock

✓  2 Year PDF Supply Warranty

*Need a Specific Revision?

Ships .

New Surplus

$137

Save $38

20 In Stock

✓  3 Year PDF Supply Warranty

*What is New Surplus?

Ships .

Reman

$109

Save $66

128 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Other Available Revisions for the IC670MDL730 IC670MDL730AIC670MDL730BIC670MDL730CIC670MDL730DIC670MDL730EIC670MDL730FIC670MDL730GIC670MDL730HIC670MDL730IIC670MDL730JIC670MDL730KIC670MDL730LIC670MDL730MIC670MDL730NIC670MDL730OIC670MDL730PIC670MDL730QIC670MDL730RIC670MDL730SIC670MDL730TIC670MDL730UIC670MDL730VIC670MDL730WIC670MDL730XIC670MDL730YIC670MDL730Z

Common misspellings:
  • 1C670MDL730
  • IC67oMDL730
  • IC670MD1730
  • IC670MDL73o
  • IC670MDL730

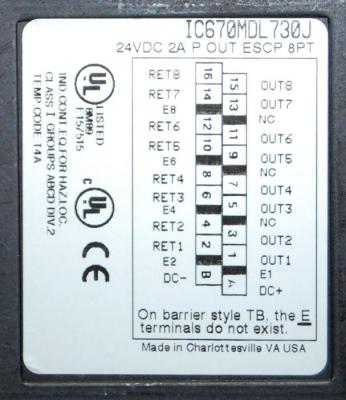

24VDC 2A Output, Pos. Logic, 8 Point, Electronic Short Circuit Protect ion MDL730 IC67 IC670MDL

Technical Information

The IC670MDL730 electronic short-circuit protection output module is a positive logic discrete output module from GE Fanuc. It offers 8 discrete outputs that have electronic overcurrent and short circuit protection. Each output point generates a fault waring if 1 of these 2 conditions has occurred. The IC670MDL730 discrete output module is compatible with the GE Fanuc IC670GBI002 Genius bus interface unit revision 2.10 or later. Some of the output characteristics of the module include 10 Amps of maximum inrush current per point, 0.5 Volts of maximum steady-state overcurrent per point, 0.5 milliamps of output leakage current at 30 Volts DC, and 20 Amps of short circuit response time for 100 microseconds.



The IC670MDL730 discrete output module has 4 optional keying locations that are the A, C, J, and K keying location. It is designed to be used with a Profibus bus interface unit or an Interbus-S bus interface unit. This module has the capability to convert serial data from the bus interface unit into a parallel format by using its serial to parallel converter. It has FETs that source the current to the load and they are driven by an external power supply. The IC670MDL730 electronic short-circuit protection output module has 3 types of protection functions which are overcurrent protection, short circuit protection, and an MOV. The MOV which is located across the power supply line protects the module from voltage transients and surges. Make sure to consider specifications of the short circuit operations before selecting an external power supply because the external power supply must maintain the output voltage levels while also providing the short circuit energy.

ST. LOUIS, Feb. 1, 2019 – Emerson today announced it has completed the purchase of Intelligent Platforms from General Electric.
