GE / IP FANUC Series 90/30 In Stock
SKU 2172419 UPC 0799705792999
All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.
PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.
Other Available Revisions for the IC670MDL643 IC670MDL643AIC670MDL643BIC670MDL643CIC670MDL643DIC670MDL643EIC670MDL643FIC670MDL643GIC670MDL643HIC670MDL643IIC670MDL643JIC670MDL643KIC670MDL643LIC670MDL643MIC670MDL643NIC670MDL643OIC670MDL643PIC670MDL643QIC670MDL643RIC670MDL643SIC670MDL643TIC670MDL643UIC670MDL643VIC670MDL643WIC670MDL643XIC670MDL643YIC670MDL643Z

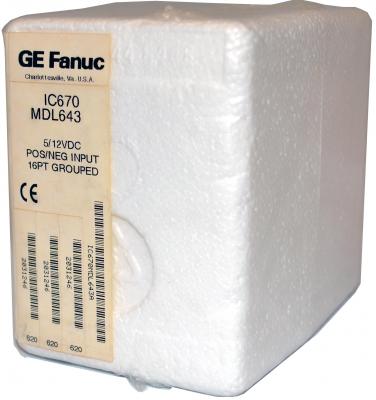

5/12Vdc Pos./Neg. Logic Input, 16 Point, Grouped MDL643 Field Cont.IC670M IC670M IC670MDL
The IC670MDL643 DC input module is a positive/negative input module designed by GE Fanuc. It provides 16 discrete inputs that are arranged in 2 equal groups of 8 inputs each. Positive or negative logic can be used to drive the inputs. The IC670MDL643 DC positive/negative input module uses a 5 Volts DC or 12 Volts DC power supply as the external power source. The logic power of the module is supplied by the power supply in the bus interface module. The input characteristics of the IC670MDL643 DC input module include 1K Ohms of typical input impedance, 2.5 milliamps to 16 milliamps of on-state current, 0 to 0.3 milliamps of off-state current, and 300 microseconds of on-state response time.

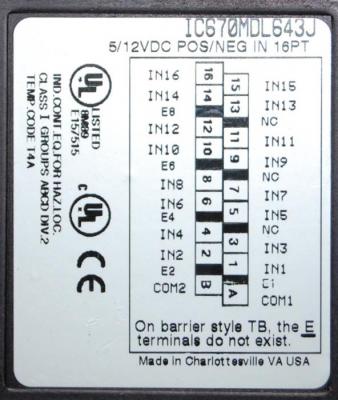

The IC670MDL643 DC positive/negative input module comes with optional keying locations labeled with the letters A, B, G, and H. It has a network of resistors, diodes, and capacitors for providing input filtering and establishing thresholds. The data buffer of the module stores the data which is sent from 16 inputs and then converts it into a serial format before sending it to the bus interface unit. The bus interface unit reads the filtered and converted signals and processes them inside the unit itself. Each input group consists of 8 inputs and each group can have different logic levels such as +5 Volts DC and -12 Volts DC. Depending on the connection of the power supply, the positive or negative operation of the module can be selected. Each input point has individual indicator LEDs and their status is clearly visible through the transparent portion of the top plate on the module.
