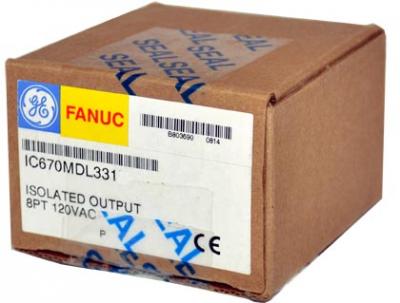

GE / IP FANUC Series 90/30 In Stock

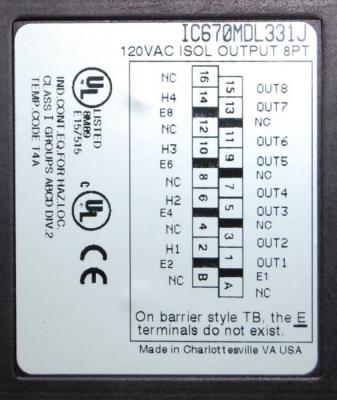

IC670MDL331
SKU 2176115 UPC 0799705793033
All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.
PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.
Other Available Revisions for the IC670MDL331 IC670MDL331AIC670MDL331BIC670MDL331CIC670MDL331DIC670MDL331EIC670MDL331FIC670MDL331GIC670MDL331HIC670MDL331IIC670MDL331JIC670MDL331KIC670MDL331LIC670MDL331MIC670MDL331NIC670MDL331OIC670MDL331PIC670MDL331QIC670MDL331RIC670MDL331SIC670MDL331TIC670MDL331UIC670MDL331VIC670MDL331WIC670MDL331XIC670MDL331YIC670MDL331Z
Common misspellings:
- 1C670MDL331
- IC67oMDL331
- IC670MD1331
- IC670MDL33l
- IC670MDL331
120VAC 2A Output, 8 Point, Isolated MDL331 GE Fanuc Field Control IC670M IC670MD IC670MDL
Technical Information
The IC670MDL331 output module is manufactured by GE Fanuc as a member of the GE Field Control product family. This isolated output module has 8 outputs arranged in 4 groups with 2 output points each, and each group is isolated from the other. It runs on power drawn from the Bus Interface Unit or BIU’s power supply while an external AC power source powers the additional loads. The IC670MDL331 module has LED indicators on the logic side and they are visible from the translucent part on top of this unit. These indicators show the on and off statuses of each output. The LEDs are labeled “F1 PWR,” “F2 PWR,” “F3 PWR,” and “F4 PWR.” This output module has a 120 Volts AC voltage rating and a 85 to 132 Volts AC voltage range at 47 to 63 Hertz frequency. It has an output current of 2 Amps maximum per point and 6 to 8 Amps maximum per module.
Other notable specifications of the IC670MDL331 output module by GE Fanuc include a maximum current of 154 milliamps that is drawn from the power supply of the Bus Interface Unit. It also has an isolation voltage rating of 250 Volts AC continuous and 1500 Volts AC for 1 minute for the user input to frame ground isolation and the user input to logic isolation. This module does not have isolation between different input points within a group. Some output characteristics of the GE Fanuc IC670MDL331 module include 3.0 Volts of maximum output voltage drop, 2 milliamps (at 120 Volts AC) of output leakage current, and a maximum inrush current rating of 20 Amps per cycle with each cycle rated at 20 microseconds.
