IC670MDL241

★ ★ ★ ★ ★ Rated 4.4/5 Based on 10 ratings.

Rate your purchase of the IC670MDL241

SKU 2172158  UPC 0799705793057

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

New

$1350

6 In Stock

✓  2 Year PDF Supply Warranty

*Need a Specific Revision?

Ships .

New Surplus

$1282

Save $68

1 In Stock

✓  3 Year PDF Supply Warranty

*What is New Surplus?

Ships .

Reman

$1026

Save $324

5 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Other Available Revisions for the IC670MDL241 IC670MDL241AIC670MDL241BIC670MDL241CIC670MDL241DIC670MDL241EIC670MDL241FIC670MDL241GIC670MDL241HIC670MDL241IIC670MDL241JIC670MDL241KIC670MDL241LIC670MDL241MIC670MDL241NIC670MDL241OIC670MDL241PIC670MDL241QIC670MDL241RIC670MDL241SIC670MDL241TIC670MDL241UIC670MDL241VIC670MDL241WIC670MDL241XIC670MDL241YIC670MDL241Z

Common misspellings:
  • 1C670MDL241
  • IC67oMDL241
  • IC670MD1241
  • IC670MDL2A1
  • IC670MDL24l
  • IC670MDL241

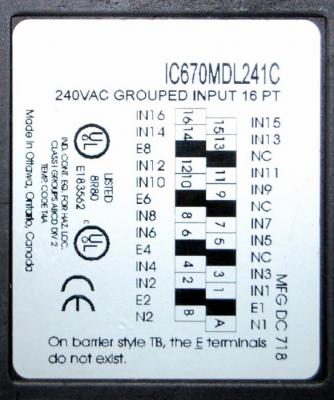

240VAC Input, 16 Point, 2 Groups of 8 MDL2471 GE Fanuc Field Control GE IC670MD IC670MDL

Technical Information

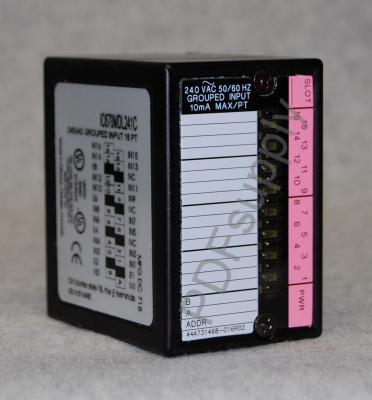

The GE Fanuc IC670MDL241 input module is a 240 Volts AC discrete input module manufactured as a member of the GE Field Control series. This module has 2 separate input groups, with each consisting of 8 discrete inputs points. It is powered by the Bus Interface Unit (BIU) power supply while there is an additional external 240 Volts AC rated power source that powers every isolated group. This module has inputs that respond to voltages within the range of 0 to 265 Volts AC. It features LED indicators that show the on and off statuses of each input point, as well as a separate “PWR” LED indicator that turns on to indicate the presence of backplane power and the field power. The IC670MDL241 module features a network of capacitors and resistors that provide the filtering of the inputs and establish the input thresholds.  It also has optoisolators for providing isolation between the logic components of the module and the field inputs.



The input characteristics of the GE Fanuc IC670MDL241 input module include a typical reactive input impedance rating of 38.5 kiloohms and 46.3 kiloohms at 60 and 50 Hertz, respectively. It has an on-state voltage ranging from 155 to 265 Volts AC, and an off-state voltage range of 0 to 40 Volts AC. This module also has an on-state current of 4 to 10 milliamps and an off-state current rating of 0 to 1.5 milliamps. Other notable input specifications for the IC670MDL241 input module include a maximum on response time of 20 milliseconds and a maximum off response time of 20 milliseconds. It draws a maximum current of 77 milliamps from the BIU power supply.
