GE / IP FANUC Series 90/30 In Stock
IC670MDL233
SKU 2177159 UPC 0799705793071
All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.
PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.
Other Available Revisions for the IC670MDL233 IC670MDL233AIC670MDL233BIC670MDL233CIC670MDL233DIC670MDL233EIC670MDL233FIC670MDL233GIC670MDL233HIC670MDL233IIC670MDL233JIC670MDL233KIC670MDL233LIC670MDL233MIC670MDL233NIC670MDL233OIC670MDL233PIC670MDL233QIC670MDL233RIC670MDL233SIC670MDL233TIC670MDL233UIC670MDL233VIC670MDL233WIC670MDL233XIC670MDL233YIC670MDL233Z
Common misspellings:
- 1C670MDL233
- IC67oMDL233
- IC670MD1233
- IC670MDL233

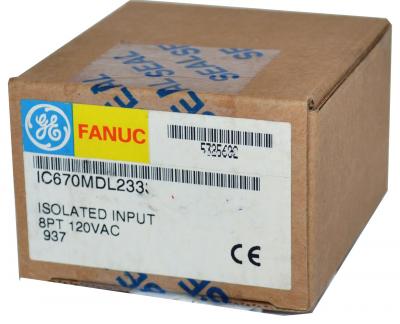

In Stock! 120VAC Input, 8 Point, Isolated GE Fanuc Field Control MDL IC670 IC670MD IC670MDL
Technical Information

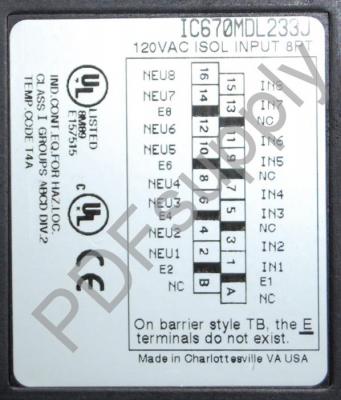

The IC670MDL233 input module is an isolated input module with 120 Volts AC of voltage rating. This input module is manufactured by the GE Fanuc as a member of the GE Field Control product family. The GE Fanuc IC670MDL233 120 Volts AC isolated input module has 8 isolated discrete inputs. Although the Bus Interface Unit power supply powers the input module, an external power source rated at 120 Volts is required to run the additional input devices. This module also responds to a voltage ranging from 0 to 132 Volts AC. There are LED indicators under the transparent part on top of the module to show the on and off states of every individual input point. There is also a “PWR” LED, which turns on when there is backplane power.
Unlike some input or output modules, the IC670MDL233 input module has a continuous point to point isolation rating of 300 Volts AC. It also has a user input-frame ground and user input-logic isolation rating of 1500 Volts AC for 60 seconds, and 250 Volts AC continuous. The GE Fanuc IC670MDL233 isolated input module draws a maximum current of 40 milliamps from the Bus Interface Unit (BIU) power source. Other characteristics of this input module include 13 milliamps of typical user input current per point when the IC670MDL233 input module is operating at a rated voltage of 120 Volts AC. It also has an input voltage ranging from 0 to 132 Volts AC with a frequency rating ranging from 47 to 63 Hertz. Additionally, this input module has multiple optional keying locations.
