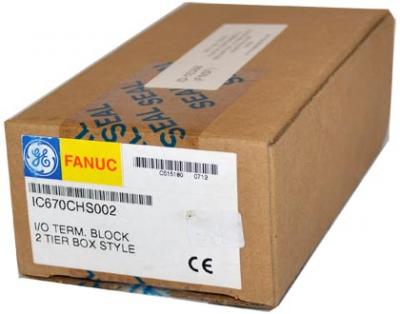

IC670CHS002

★ ★ ★ ★ ★ Rated 4.2/5 Based on 10 ratings.

Rate your purchase of the IC670CHS002

SKU 2174318  UPC 0799705793217

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

Request a Quote for IC670CHS002

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

New

$339

16 In Stock

✓  2 Year PDF Supply Warranty

*Need a Specific Revision?

Ships .

New Surplus

$245

Save $94

32 In Stock

✓  3 Year PDF Supply Warranty

*What is New Surplus?

Ships .

Surplus New

$233

Save $106

2 In Stock

✓  3 Year PDF Supply Warranty

*What is Surplus New?

Ships .

Reman

$198

Save $141

120 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$159

Save $180

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the IC670CHS002 IC670CHS002AIC670CHS002BIC670CHS002CIC670CHS002DIC670CHS002EIC670CHS002FIC670CHS002GIC670CHS002HIC670CHS002IIC670CHS002JIC670CHS002KIC670CHS002LIC670CHS002MIC670CHS002NIC670CHS002OIC670CHS002PIC670CHS002QIC670CHS002RIC670CHS002SIC670CHS002TIC670CHS002UIC670CHS002VIC670CHS002WIC670CHS002XIC670CHS002YIC670CHS002Z

Common misspellings:
  • 1C670CHS002
  • IC67oCHS002
  • IC670CHSo02
  • IC670CHS0o2
  • IC670CHS002

I/O Base, Box Style GE Fanuc Field Control CHS002 Rack PLC Field Cont. IC670 IC670CH IC670CHS

Technical Information

The IC670CHS002 I/O box-style terminal block is a product of GE Fanuc that is manufactured as part of the GE Field Control product family. These I/O terminal blocks with box terminals are generally generic terminal bases designed to provide backplane communication, terminal connections, and module mounting functions. The IC670CHS002 I/O terminal block allows for the installation of up to 2 modules which need to be screwed on the terminal block for effective vibration resistance. However, these modules can also be removed without meddling with the blocks’ field wiring. Each of the I/O modules have 3 groups of similar terminals. Group A consists of terminals that are internally connected while the Group B terminals are also connected, but it can be used for power connections. Group E consists of 5 similar terminals which are tied together internally and which are isolated from the power terminals as well as the point terminals. These terminals can be used as required for application wiring with terminals 1 to 16 used for wiring of the I/O.



Every GE Fanuc IC670CHS002 I/O box-style terminal block has a slot for projecting the alignment at every position of a module. The IC670CHS002 I/O terminal block is an I/O base that is used with the GE modules that have a catalog number with the suffix “J” or above, and those that have a projecting tab that fits into the alignment slot. A version 2.1+ Bus Interface Unit or BIU is essential for the hot removal or hot insertion of the modules in the I/O station. The IC670CHS102 I/O terminal block and the IC670CHS002B I/O terminal block or later versions feature a metal grounding strip below them and they can be used with a sturdy and conductive DIN rail as the mounting base.

ST. LOUIS, Feb. 1, 2019 – Emerson today announced it has completed the purchase of Intelligent Platforms from General Electric.
