IC670CHS001

★ ★ ★ ★ ★ Rated 4.5/5 Based on 10 ratings.

Rate your purchase of the IC670CHS001

SKU 2176036  UPC 0799705793224

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

Request a Quote for IC670CHS001

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

New Surplus

$228

21 In Stock

✓  3 Year PDF Supply Warranty

*What is New Surplus?

Ships .

Surplus New

$169

Save $59

10 In Stock

✓  3 Year PDF Supply Warranty

*What is Surplus New?

Ships .

Reman

$114

Save $114

75 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$92

Save $136

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the IC670CHS001 IC670CHS001AIC670CHS001BIC670CHS001CIC670CHS001DIC670CHS001EIC670CHS001FIC670CHS001GIC670CHS001HIC670CHS001IIC670CHS001JIC670CHS001KIC670CHS001LIC670CHS001MIC670CHS001NIC670CHS001OIC670CHS001PIC670CHS001QIC670CHS001RIC670CHS001SIC670CHS001TIC670CHS001UIC670CHS001VIC670CHS001WIC670CHS001XIC670CHS001YIC670CHS001Z

Common misspellings:
  • 1C670CHS001
  • IC67oCHS001
  • IC670CHSo01
  • IC670CHS0o1
  • IC670CHS00l
  • IC670CHS001

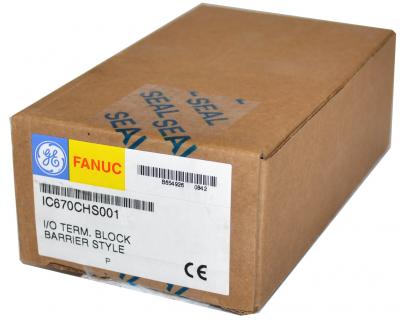

I/O Base, Barrier Style GE Fanuc Field Control CHS001 PLC Rack IC670 IC670C IC670CHS IC670CH

Technical Information

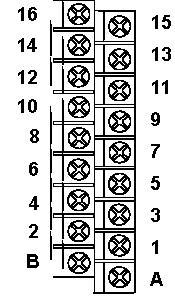

The IC670CHS001 I/O base is a barrier style terminal block. GE Fanuc manufactures this I/O terminal block as a member of the GE Field Control series. With barrier terminals, this I/O terminal block is a generic wiring base intended to offer features like terminations for operator connections, backplane communication, and a way to mount the modules. It supports up to 2 modules per I/O block, and these modules should be bolted firmly on the terminal block to boost vibration resistance. These modules can be detached and replaced without having to tamper with the field connections. The GE Fanuc IC670CHS001 I/O terminal block with barrier terminals features a total of 37 terminals arranged in 2 groups. The Group A and Group B terminals are usually used for connecting power to the terminal block while the remaining terminals work as individual terminals and are ideal for I/O wiring.



Every terminal on the IC670CHS001 I/O terminal block with a barrier terminal can accommodate a maximum of 2 wires with AWG #14 to AWG #22 gauge ratings. Copper wire with a temperature rating of 90 degrees Celsius is recommended for use and the recommended terminal torque is 8 pounds on an inch. For safety purposes, the ground wire needs to be AWG #14 wire and it should not exceed 4 inches or 10.16 centimeters in length. The IC670CHS001 I/O terminal block supports the hot removal and hot insertion of the modules, and this will not interfere with the BIU or the other modules in the I/O station. The hot removal and insertion processes should be carried out in environments that are not hazardous.
