Technical Specifications for IC670ALG630
| Manufacturer | GE Fanuc |
|---|---|
| Series | Versamax |
| Part Number | IC670ALG630 |
| Product Type | Thermocouple Input Module |
| Number of Channels | 8 |
| Thermocouple Types | J, K, T, E, S, R, B, N, G, C, D, Platinel II |
| Converter Resolution | 15 bits + sign |
| Isolation | 1500 Volts AC |
| Scan Time | 60 or 70 milliseconds per point |
| Operating Temperature Range | 0 to 55 degrees Celsius |
Thermocouple, 8 Channel Module ALG630 GE Fanuc Field Control PLC IC670A IC670AL IC670ALG
The IC670ALG630 Thermocouple Input Module is an 8-input, self-calibrated analog input module designed by GE Fanuc in the Versamax series. It is a microprocessor-based thermocouple input module that receives the thermocouple signal from the 8 isolated inputs to convert it into a digital form. The complete I/O data exchange process is handled by the bus interface module. At each power up, the module performs A/D calibration on itself. The data type which is used by the thermocouple input module is the word data type. It has 8 words of analog input data and 8 words of analog output data. The IC670ALG630 Thermocouple Input Module draws 195 milliamps of maximum current from the BIU power supply.

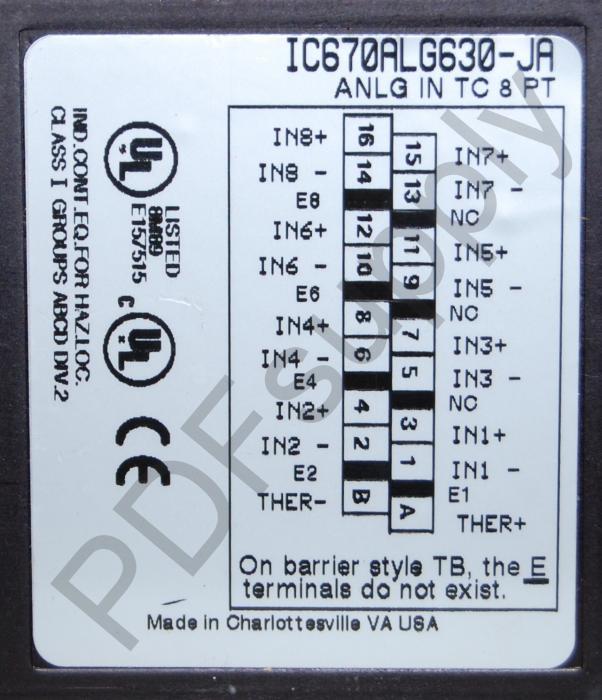

The IC670ALG630 Thermocouple Input Module supports a variety of thermocouple types including the J, K, T, E, S, R, B, N, G, C, D, and type Platinel II thermocouples. It has an optically-coupled multiplexer circuitry which has the responsibility of extracting analog signal readings in order to send them to the analog to digital converter. The analog voltage value is converted into a binary value. The thermocouple inputs of the IC670ALG630 Module can be configured individually to report sensor readings as temperature or millivolt readings. Some of the features of the module include 2 data acquisition rates, configurable high/low alarm levels, millivolt ranges, and a single indicator LED. It can be wired directly to the I/O terminal block where it is installed. It can also perform a variety of diagnostics to provide diagnostic data to the bus interface unit for quick error detection. It can also detect faults such as an open thermocouple, over/under range, and high/low alarm faults.
Technical Information
The GE IC670ALG630 module is a thermocouple module with 8 channels. This component is produced by GE Fanuc and it is compatible with the following field control PLCs: the IC670A, the IC670AL, and the IC670ALG PLCs. The available channels are all individually configurable and the module operates with the following thermocouple types: J, K, T, E, S, R, B, N, G, C, D, and Platinel II. The specified voltage of the module ranges from 19.5 to 625 milliVolts. The converter resolution of the IC670ALG630 thermocouple module is 15 bits plus sign. The module shows a conformity error at +/- 0.3 degrees Celsius (0.5 degrees Fahrenheit).
The IC670ALG630 module has a normal mode rejection of 60 decibels at a frequency of 50 to 60 Hertz and a common mode rejection of 120 decibels at the frequency of 50 to 60 Hertz. The common mode voltage is 250 Volts RMS (350 Volts DC or peak AC) and the maximum voltage between channels is 250 Volts AC. The isolation voltage of the IC670ALG630 module is 1500 Volts AC for 1 minute and 250 Volts AC (continuous). The channel to channel isolation voltage is also 250 Volts (continuous). The maximum current draw from the BIU power supply is 195 milliamps. The fault detection features are the open thermocouple, over/under range, and high/low alarm features. The IC670ALG630 module provides an accuracy rating of +/- 0.1% of the reading and +/- 0.05% of the span for compatible thermocouple types. The specified accuracy of the module is measured at a temperature of 25 degrees Celsius. The module features an operating temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit).
