IC670ALG621

★ ★ ★ ★ ★ Rated 4.5/5 Based on 13 ratings.

Rate your purchase of the IC670ALG621

SKU 2170150  UPC 0799705793248

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

New

$1322

39 In Stock

✓  2 Year PDF Supply Warranty

*Need a Specific Revision?

Ships .

Reman

$828

Save $494

82 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Other Available Revisions for the IC670ALG621 IC670ALG621AIC670ALG621BIC670ALG621CIC670ALG621DIC670ALG621EIC670ALG621FIC670ALG621GIC670ALG621HIC670ALG621IIC670ALG621JIC670ALG621KIC670ALG621LIC670ALG621MIC670ALG621NIC670ALG621OIC670ALG621PIC670ALG621QIC670ALG621RIC670ALG621SIC670ALG621TIC670ALG621UIC670ALG621VIC670ALG621WIC670ALG621XIC670ALG621YIC670ALG621Z

Common misspellings:
  • 1C670ALG621
  • IC67oALG621
  • IC670A1G621
  • IC670ALG62l
  • IC670ALG621

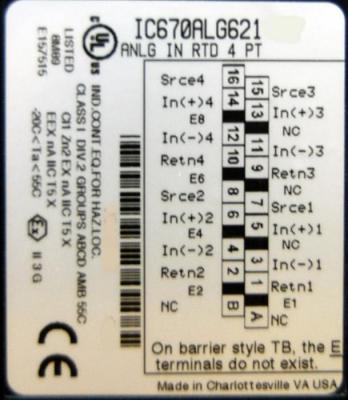

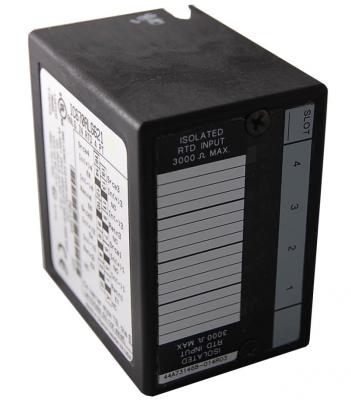

Analog Input 4 pt RTD GE Fanuc Field Control Module IC670 IC670A IC670AL IC670ALG IC670ALG6

Technical Information

The GE Fanuc IC670ALG621 module is an RTD analog input module, and it is manufactured as a member of the GE Fanuc Field Control product family. This RTD input module receives 4 inputs from 3-wire or 4-wire RTDs and then converts the input-level value to a digital value. Its input spans allow for a wide range of RTD types. There is a digital/analog converter that can read the voltage value generated from every single input. It converts a differential-measurement to a binary-value with 15 bits+ sign, as interpreted by the microprocessor of the block. The microprocessor is designed to set the necessary gain for the analog/digital converter for every single input. This gain will depend on the type of RTD that is configured for that input.



The operation of the GE Fanuc Field Control IC670ALG621 RTD analog input module involves a microprocessor that selects inputs through a solid-state and optically-coupled multiplexer. Each input has 3 measurements, including the field wire drop, RTD resistance with field wire drop, and the excitation current measurements. These 3 measurements enable the IC670ALG621 RTD analog input module to calculate the RTD resistance. There is also a AC/DC converter circuit that helps to isolate the field side from the logic circuits. This module is designed to perform the analog/digital calibration when it is powered on automatically. The automatic calibration repeats after every minute, thus compensating for the changes that may arise due to the ambient temperature. The IC670ALG621 module has a RAM that stores its calibration constants for each gain. Various RTD types rated 0 to 3276.7 Ohms are connected to this module to enable the operators to integrate the essential temperature measurements into the control platform.
