IC670ALG330

★ ★ ★ ★ ★ Rated 4.6/5 Based on 7 ratings.

Rate your purchase of the IC670ALG330

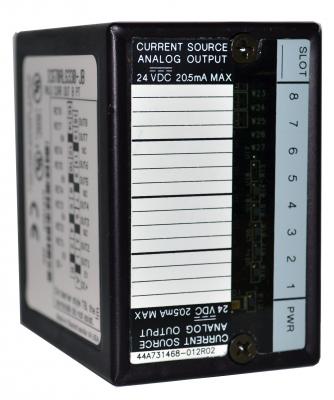

IC670ALG330 Analog Output, Current, 8 Channel IC670A IC670AL IC670ALG PDFsupply also repairs GE IP F

SKU 2173100  UPC 0799705793279

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

Request a Quote for IC670ALG330

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

New Surplus

$1589

15 In Stock

✓  3 Year PDF Supply Warranty

*What is New Surplus?

Ships .

Surplus New

$1416

Save $173

1 In Stock

✓  3 Year PDF Supply Warranty

*What is Surplus New?

Ships .

Reman

$1085

Save $504

34 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$868

Save $721

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the IC670ALG330 IC670ALG330AIC670ALG330BIC670ALG330CIC670ALG330DIC670ALG330EIC670ALG330FIC670ALG330GIC670ALG330HIC670ALG330IIC670ALG330JIC670ALG330KIC670ALG330LIC670ALG330MIC670ALG330NIC670ALG330OIC670ALG330PIC670ALG330QIC670ALG330RIC670ALG330SIC670ALG330TIC670ALG330UIC670ALG330VIC670ALG330WIC670ALG330XIC670ALG330YIC670ALG330Z

Common misspellings:
  • 1C670ALG330
  • IC67oALG330
  • IC670A1G330
  • IC670ALG33o
  • IC670ALG330

Analog Output, Current, 8 Channel ALG330 GE Fanuc Field Control PLC IC670A IC670AL IC670ALG

Technical Information

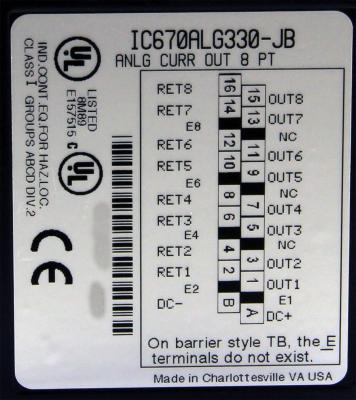

The GE Fanuc IC670ALG330 Genius Field Control analog current source output module is an 8-point analog output module that is made for the Genius Field Control station. The Field Control station offers the users a wide range of host architectures that are specially built to meet a variety of application needs. A typical Genius Field Control station comprises a Bus Interface Unit (BIU) and a group of 8 I/O modules all installed on a terminal block. The IC670ALG330 analog current source output module belongs to the Genus Field Control I/O family. This module supports 8 current-loop outputs on a common power supply, and it provides 8 output circuit channels with user-configurable scaling on each output point. The IC670ALG330 analog output module receives engineering units (digital data) output from the Bus Interface Unit (BIU) and then scales this data to meet its configured output current scaling parameter range (0 to 20.48 milliamps).



The standard diagnostic features for the IC670ALG330 analog current source output module include open-wire detection, and an over/under-range alarm which only trips when the engineering unit value sent by the BIU results in an output value that exceeds the module’s default scaling parameters. Other standard module features include the “channel active/inactive” capability which means each output channel can be configured as active or inactive, and it comes with 3 pre-defined scaling sections and one user-defined scaling setting. The IC670ALG330 analog current source output module requires an external power supply (18 to 30 Volts DC) for operation and it draws 85 milliamps of maximum current from the backplane. The IC670ALG330 analog current source output module is configured by using a hand-held programmer, and it is installed on an I/O terminal block which provides simplified field wiring and allows for the replacement of the module without reconfiguring the terminal wiring.
