IC670ALG240

★ ★ ★ ★ ★ Rated 4.6/5 Based on 14 ratings.

Rate your purchase of the IC670ALG240

SKU 2177437  UPC 0799705796164

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

Request a Quote for IC670ALG240

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

New

$2310

1 In Stock

✓  2 Year PDF Supply Warranty

*Need a Specific Revision?

Ships .

New Surplus

$2090

Save $220

11 In Stock

✓  3 Year PDF Supply Warranty

*What is New Surplus?

Ships .

Surplus New

$1794

Save $516

1 In Stock

✓  3 Year PDF Supply Warranty

*What is Surplus New?

Ships .

Reman

$1014

Save $1,296

22 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$812

Save $1,498

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the IC670ALG240 IC670ALG240AIC670ALG240BIC670ALG240CIC670ALG240DIC670ALG240EIC670ALG240FIC670ALG240GIC670ALG240HIC670ALG240IIC670ALG240JIC670ALG240KIC670ALG240LIC670ALG240MIC670ALG240NIC670ALG240OIC670ALG240PIC670ALG240QIC670ALG240RIC670ALG240SIC670ALG240TIC670ALG240UIC670ALG240VIC670ALG240WIC670ALG240XIC670ALG240YIC670ALG240Z

Common misspellings:
  • 1C670ALG240
  • IC67oALG240
  • IC670A1G240
  • IC670ALG2A0
  • IC670ALG24o
  • IC670ALG240

Analog Input, Current, 16 Channel ALG240 GE Fanuc Field Control IC670 IC670A IC670AL IC670ALG

Technical Information

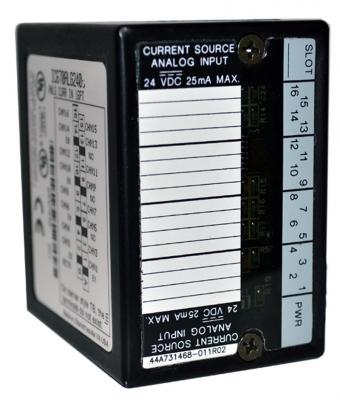

The GE Fanuc IC670ALG240 analog current output module is a 16-point grouped analog input module for the Genius Field Control system. The IC670ALG240 analog current output module comes with 16 single-ended current loop inputs that accept input signals from 2-wire and 3-wire current transmitters and then convert the signals to digital values for the host processor. Each IC670ALG240 analog current output module’s input provides 0 to 25 milliamps of filtered signal, scaling the signal according to the set scaling parameters and then converting it to engineering units for the host processor. During operation, the IC670ALG240 analog input module checks every scaled signal against the software-configured alarm and user-defined under-range/over-range values, and if any of the error conditions occur on a channel, the module triggers a corresponding diagnostic command that can be easily accessed and monitored by the host processor. Standard alarm reporting includes high/low alarm, under/over-range, and open wire conditions.



The IC670ALG240 analog current output module does not require an additional power supply for operation, however, a 20 to 28 Volts DC external power supply must be provided for current loops. The IC670ALG240 analog current output module features 3 unique filtering types (an input filter, a line filter, and an averaging filter) for reducing electrical noise disturbance. It also offers 3 pre-defined scale selections and a user-configured custom scaling feature. The IC670ALG240 analog current output module can be configured via the Bus Interface Unit (BIU) using a hand-held programmer, and the configured parameters can also be read and written directly from the Bus when used in applications that support such configurations. It is installed on the terminal block, which provides a wiring base, and like all Genius Field Control I/O modules, it can be replaced from the terminal block without reconfiguring terminal wiring.
