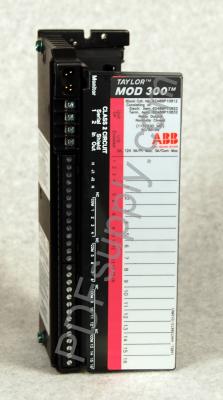

ABB Taylor Mod 300 | 623 624 Series | 6248BP10832 | Image

SKU 2178127  UPC 0799705793378

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Other Available Revisions for the 6248BP10832 6248BP10832A6248BP10832B6248BP10832C6248BP10832D6248BP10832E6248BP10832F6248BP10832G6248BP10832H6248BP10832I6248BP10832J6248BP10832K6248BP10832L6248BP10832M6248BP10832N6248BP10832O6248BP10832P6248BP10832Q6248BP10832R6248BP10832S6248BP10832T6248BP10832U6248BP10832V6248BP10832W6248BP10832X6248BP10832Y6248BP10832Z

Common misspellings:
  • 62A8BP10832
  • 624bBP10832
  • 62488P10832
  • 6248BPl0832
  • 6248BP1o832
  • 6248BP10b32
  • 6248BP10832

Terminal Assembly for 6248BP10812

Technical Information

The Model 300 product with the product code 6248BP10832 is a terminal assembly for the 6248BP10812 block. The terminal assembly is part of a block that has 16 normally-open circuits. The relay output block has outputs which are divided into 4 isolated groups and it can be connected to a power supply with either 115 Volts AC or 230 Volts AC rated voltage. The output groups can be connected to either AC or DC power sources and their group to group isolation voltage rating is 1500 Volts. The Series 623/624 blocks have features like bus switching module control, CPU redundancy, output “hold last state,” output powerup, compatibility with hand-held monitors, LED indicators for the I/O block and individual circuits, and duplex default state features.



The 6248BP10832 terminal assembly offers variety of configuration options and it supports field wiring with either AWG #22 or AWG #12 wires. The typical operating temperature of the block is 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) and its relative humidity should be kept within a 5 to 95% range in non-condensing relatively humid conditions. The output leakage current of the 6248BP10832 terminal assembly for the off-state is 0.1 milliamps while the maximum inrush current is 2 Amps per circuit. The maximum output current is the same as the maximum inrush current and the maximum switching power is 60 Watts or 125 Volt-Amps. The output turn-on delay time is not more than 5 milliseconds. In addition to that, the minimum load which is recommended for the 6248BP10832 terminal assembly is 10 milliamps. For inductive loads, the maximum switching frequency is 20 cycles per minute.
