6248BP10831

★ ★ ★ ★ ★ Rated 4/5 Based on 5 ratings.

Rate your purchase of the 6248BP10831

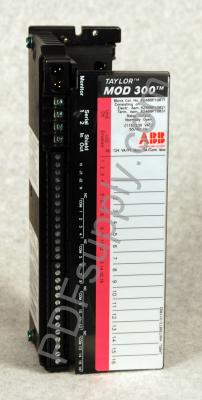

ABB Taylor Mod 300 | 623 624 Series | 6248BP10831 | Image

SKU 2171266  UPC 0799705793361

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Other Available Revisions for the 6248BP10831 6248BP10831A6248BP10831B6248BP10831C6248BP10831D6248BP10831E6248BP10831F6248BP10831G6248BP10831H6248BP10831I6248BP10831J6248BP10831K6248BP10831L6248BP10831M6248BP10831N6248BP10831O6248BP10831P6248BP10831Q6248BP10831R6248BP10831S6248BP10831T6248BP10831U6248BP10831V6248BP10831W6248BP10831X6248BP10831Y6248BP10831Z

Common misspellings:
  • 62A8BP10831
  • 624bBP10831
  • 62488P10831
  • 6248BPl0831
  • 6248BP1o831
  • 6248BP10b31
  • 6248BP1083l
  • 6248BP10831

Terminal Assembly for 6248BP10811

Technical Information

The terminal assembly labelled with the product code 6248BP10831 is designed and manufactured by ABB/Taylor and it carries a Model 300 label. The assembly is also part of the ABB 623/624 series and it has normally-open circuits. This terminal assembly features 16 individual circuits and it is intended to be used on 115/230 Volts AC power sources. The terminal assembly is part of a block that has outputs arranged in 4 isolated groups. The dimensions of the Model 300 block are 224 x 88 x 100 millimeters (8.8 x 3.5 x 3.9 inches). The manufacturer offers complete blocks or it allows people to purchase the terminal and electronics assemblies separately. Although they are normally-open, the Model 300 blocks are also available with normally-closed outputs. The design of these blocks offers flexibility and the included safety features ensure that these units are always reliable.



The block of the ABB/Taylor 6248BP10831 terminal assembly has a 1-cycle dropout time for the power supply and it requires a power source with a current rating of 87 milliamps at a voltage level of 115 Volts AC. The block power supply frequency is within the range of 47 to 63 Hertz and the isolation voltage rating is 1500 Volts. Additionally, the 6248BP10831 terminal assembly has 10.1 Watts of heat dissipation and a maximum switching power level of 60 Watts or 125 Volt-Amps. The 6248BP10831 terminal assembly has a fixed coil moving armature design and it weighs 1.8 kilograms (4 pounds). The terminal assembly has an operating temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) and a storage temperature range of -40 to 100 degrees Celsius (-40 to 212 degrees Fahrenheit).
