6248BP10822

★ ★ ★ ★ ★ Rated 4.6/5 Based on 5 ratings.

Rate your purchase of the 6248BP10822

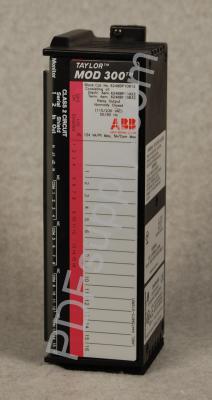

ABB Taylor Mod 300 | 623 624 Series | 6248BP10822 | Image

SKU 2174007  UPC 0799705793354

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Other Available Revisions for the 6248BP10822 6248BP10822A6248BP10822B6248BP10822C6248BP10822D6248BP10822E6248BP10822F6248BP10822G6248BP10822H6248BP10822I6248BP10822J6248BP10822K6248BP10822L6248BP10822M6248BP10822N6248BP10822O6248BP10822P6248BP10822Q6248BP10822R6248BP10822S6248BP10822T6248BP10822U6248BP10822V6248BP10822W6248BP10822X6248BP10822Y6248BP10822Z

Common misspellings:
  • 62A8BP10822
  • 624bBP10822
  • 62488P10822
  • 6248BPl0822
  • 6248BP1o822
  • 6248BP10b22
  • 6248BP10822

Electronic Assembly for 6248BP10812

Technical Information

The electronic assembly with the catalog number 6248BP10822 is part of Series 623/624 by ABB/Taylor. The component is a relay output component with normally-open outputs. It operates on power sources with voltage ratings of 115/230 Volts AC and an operating frequency of 50 to 60 Hertz. The electronic assembly has features that can be configured and some of these features are the CPU redundancy, output “hold last state,” output powerup, and bus switching module control features. For example, the “hold last state” feature of the unit holds the outputs in their current state and it is held if communication with the CPU is not restored. Also, the last state can be a return to the powerup default if the power is removed from the block or the output is changed through a hand-held monitor.



The 6248BP10822 electronic assembly can be used with an additional hand-held monitor that shows the current states of all the outputs. The current states are shown on Line 4 of the screen. Additionally, the monitor displays individual circuits with the fault and force status of the outputs. The 6248BP10822 electronic assembly features EEPROM diagnostics for system failures and it does not include any diagnostics for individual circuits. The supported wire sizes for the field wiring of devices are AWG #22 and AWG #12. It should be noted that the relay block components such as the 6248BP10822 electronic assembly can be used as BSM controllers. The 6248BP10822 electronic assembly dissipates 10.1 Watts of energy as heat and it has an isolation voltage of 1500 Volts. The unit has 16 available outputs and it needs a power source with a current rating of 87 milliamps.
