6248BP10821

★ ★ ★ ★ ★ Rated 4.5/5 Based on 14 ratings.

Rate your purchase of the 6248BP10821

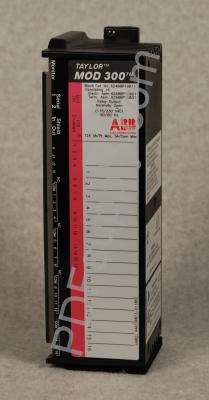

ABB Taylor Mod 300 | 623 624 Series | 6248BP10821 | Image

SKU 2173309  UPC 0799705793347

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$604

129 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$484

Save $120

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the 6248BP10821 6248BP10821A6248BP10821B6248BP10821C6248BP10821D6248BP10821E6248BP10821F6248BP10821G6248BP10821H6248BP10821I6248BP10821J6248BP10821K6248BP10821L6248BP10821M6248BP10821N6248BP10821O6248BP10821P6248BP10821Q6248BP10821R6248BP10821S6248BP10821T6248BP10821U6248BP10821V6248BP10821W6248BP10821X6248BP10821Y6248BP10821Z

Common misspellings:
  • 62A8BP10821
  • 624bBP10821
  • 62488P10821
  • 6248BPl0821
  • 6248BP1o821
  • 6248BP10b21
  • 6248BP1082l
  • 6248BP10821

Electronic Assembly for 6248BP10811

Technical Information

The product code 6248BP10821 is the product code for an ABB/Taylor electronic assembly that is compatible with the 6248BP10811 block. This Model 300 assembly is available through Series 623/624 and it includes 16 output circuits that are arranged in 4 equal isolated groups. This relay output block is compatible with various GE Fanuc Genius bus interface modules and modules of the PCIM or QBIM type. Additionally, the unit supports operation with an optional hand-held monitor that is helpful in certain applications. The Model 300 relay output blocks and components are built for either 115 Volts or 230 Volts AC rated power sources and they are made with LEDs that indicate block operation and the communications of the CPU. The 6248BP10821 electronic assembly includes the “Unit OK” and “I/O Enabled” indicators along with LEDs for each circuit. The circuit indicators show the individual relay coil state.



The ABB/Taylor 6248BP10821 electronic assembly features a fixed coil moving armature and it includes maximum initial contact resistance of 100 milliohms. The block components from this series have a typical lifespan of 100,000 to 200,000 operations, depending on the operating voltage that is used. The 6248BP10821 electronic assembly includes output groups with common input terminals. These blocks can have either normally-open or normally-closed outputs. The 6248BP10821 electronic assembly operates within a temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) and it has a solid resistance to the levels of vibration that may occur in an industrial environment. The power requirements of the unit include 87 milliamps of current at 115 Volts AC. This highly reliable relay output component has an isolation voltage of 1500 Volts for all the outputs to chassis ground.
