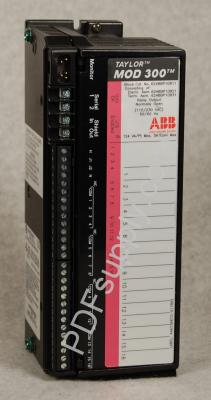

ABB Taylor Mod 300 | 623 624 Series | 6248BP10811 | Image

SKU 2171215  UPC 0799705793323

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$791

95 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$633

Save $158

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the 6248BP10811 6248BP10811A6248BP10811B6248BP10811C6248BP10811D6248BP10811E6248BP10811F6248BP10811G6248BP10811H6248BP10811I6248BP10811J6248BP10811K6248BP10811L6248BP10811M6248BP10811N6248BP10811O6248BP10811P6248BP10811Q6248BP10811R6248BP10811S6248BP10811T6248BP10811U6248BP10811V6248BP10811W6248BP10811X6248BP10811Y6248BP10811Z

Common misspellings:
  • 62A8BP10811
  • 624bBP10811
  • 62488P10811
  • 6248BPl0811
  • 6248BP1o811
  • 6248BP10b11
  • 6248BP108l1
  • 6248BP1081l
  • 6248BP10811

ABB Block Relay Output Normally Open 16 Circuits

Technical Information

The relay output block component that is known as the 6248BP10811 output block is designed and manufactured by ABB/Taylor and it has 16 available circuits. The product is part of Series 623/624 and it has normally-open outputs. The outputs of this block are grouped in 4 groups and every group has a common input terminal. Additionally, the circuits of the 6248BP10811 block have LED indicators that give the users quick status updates. The relay output component is compatible with programmable logic controllers from Series 90, Series 6, and Series 5. The compatible CPU sends out 2 bytes of output data with every bus scan and it can be used with an optional hand-held monitor which is capable of echoing the bus scan data.



The 6248BP10811 relay output block has dimensions that include a height of 224 millimeters (8.8 inches), a width of 88 millimeters (3.5 inches), and a depth of 100 millimeters (3.9 inches). Additionally, the component weighs around 1.8 kilograms or 4 pounds. The typical operating temperature range of the unit is 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) and the unit can be stored in a temperature range of -40 to 100 degrees Celsius (-40 to 212 degrees Fahrenheit). The relative humidity level should be between 5 and 95% (non-condensing) and the unit tolerates a vibration of 5 to 10 Hertz at a displacement of 5.08 millimeters (0.2 inches) or 10 to 200 Hertz at 1G. The 6248BP10811 output block has an operating voltage of 230 Volts AC and input frequency of 47 to 63 Hertz. The power supply of the unit has a dropout time of 1 cycle.
