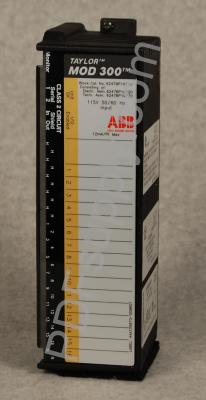

ABB Taylor Mod 300 | 623 624 Series | 6247BP10720 | Image

SKU 2172411  UPC 0185808480787

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$1136

88 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$909

Save $227

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the 6247BP10720 6247BP10720A6247BP10720B6247BP10720C6247BP10720D6247BP10720E6247BP10720F6247BP10720G6247BP10720H6247BP10720I6247BP10720J6247BP10720K6247BP10720L6247BP10720M6247BP10720N6247BP10720O6247BP10720P6247BP10720Q6247BP10720R6247BP10720S6247BP10720T6247BP10720U6247BP10720V6247BP10720W6247BP10720X6247BP10720Y6247BP10720Z

Common misspellings:
  • 62A7BP10720
  • 62478P10720
  • 6247BPl0720
  • 6247BP1o720
  • 6247BP1072o
  • 6247BP10720

Electronic Assembly for 6247BP10710

Technical Information

The ABB 6247BP10720 electronics assembly is the electronics assembly for the 6247BP10710 module which is a 115 Volts AC, 50 to 60 Hertz rated input block. The other component of the 6247BP10710 module is the 6247BP10730 part which is the module’s terminal assembly. This terminal assembly is connected to the 6247BP10720 electronics assembly to form the complete input block module. There are 16 input circuits on the 6247BP10720 electronics assembly. The power requirements of the whole input block module are a maximum of 80 milliamps for the block and a maximum of 200 milliamps for the input circuit. The power supply dropout time is 1 cycle which equates to 17.7 milliseconds at 60 Hertz and 20 milliseconds at 50 Hertz. The operating voltage range for the 6247BP10710 module is 93 to 132 Volts AC and the frequency range is 47 to 63 Hertz. The block to block isolation rating is 1500 Volts.



LEDs are provided on the 6247BP10710 input block module to indicate status of the module and the status of the I/Os. LEDs are also provided to indicate the logic side state of each input circuit. The minimum insulation resistance is 2.2 Megaohms. The typical input impedance is 11.6 ohms. The typical input processing time is 1 millisecond (plus the selectable filter time). The input off-state and on-state thresholds can be programmed anywhere from 25 to 85%. The recommended wire size for terminals 1 to 4 is one 12 AWG wire or two 14 AWG wires. The recommended wire size for terminals 5 to 32 is 22 AWG to 14 AWG. The weight of the 6247BP10710 module is 1.8 kilograms. When all 16 input circuits are on, the module dissipates 28 Watts of energy as heat. The operating temperature range for the 6247BP10720 electronics assembly and the input block module as a whole is -25 to 60 degrees Celsius.
