6247BP10710

★ ★ ★ ★ ★ Rated 4.5/5 Based on 12 ratings.

Rate your purchase of the 6247BP10710

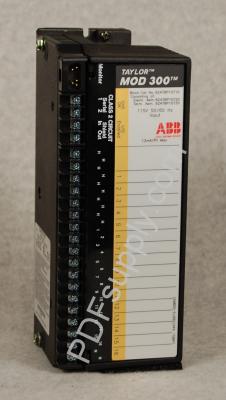

ABB Taylor Mod 300 | 623 624 Series | 6247BP10710 | Image

SKU 2171429  UPC 0361881727814

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$1673

70 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$1339

Save $334

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the 6247BP10710 6247BP10710A6247BP10710B6247BP10710C6247BP10710D6247BP10710E6247BP10710F6247BP10710G6247BP10710H6247BP10710I6247BP10710J6247BP10710K6247BP10710L6247BP10710M6247BP10710N6247BP10710O6247BP10710P6247BP10710Q6247BP10710R6247BP10710S6247BP10710T6247BP10710U6247BP10710V6247BP10710W6247BP10710X6247BP10710Y6247BP10710Z

Common misspellings:
  • 62A7BP10710
  • 62478P10710
  • 6247BPl0710
  • 6247BP1o710
  • 6247BP107l0
  • 6247BP1071o
  • 6247BP10710

ABB Block 115Vac Input 16 Circuits

Technical Information

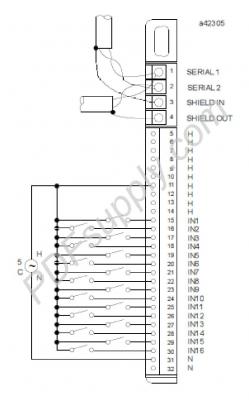

The ABB 6247BP10710 input block is a 16-circuit input block which is rated for 115 Volts AC. The 6247BP10710 input block provides an interface to 115 Volts AC rated discrete input sensors. The 16 input circuits are split into 2 banks of 8 circuits each. The module can accept inputs from a wide range of devices including pushbuttons, switches, and limit switches. The 6247BP10710 input block can be used with 2-wire and 3-wire proximity switch inputs. Control power for the 6247BP10710 input block is derived from the power supply for the inputs. One LED is provided on the module for showing status of each of the inputs and 2 LEDs are provided to show the status of the I/O block. The input circuitry on the 6247BP10710 input block is resistive. The input resistance rating is 11.6 kiloohms.



The input resistance provides a preload current of 9.9 milliamps at 115 Volts AC. The 6247BP10710 input block cannot be used as a BSM controller. The 6247BP10710 input block consists of an electronics assembly and a terminal assembly. The selectable input filter times are 10 to 100 milliseconds in 10-millisecond increments. The operating voltage range is from 93 to 132 Volts AC (at 47 to 63 Hertz). The maximum heat dissipation for the block goes up to 28 Watts when all the input circuits are active. The maximum current consumption rating of the block is 80 milliamps and the maximum current consumption of the input circuit is 200 milliamps. The weight of the 6247BP10710 block is 4 pounds. The working temperature range is from -13 to 140 degrees Fahrenheit and the storage temperature range is from -40 to 212 degrees Fahrenheit.
