6246BP10811

★ ★ ★ ★ ★ Rated 4.8/5 Based on 5 ratings.

Rate your purchase of the 6246BP10811

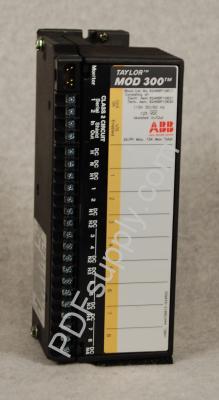

ABB Taylor Mod 300 | 623 624 Series | 6246BP10811 | Image

SKU 2178114  UPC 088797853191

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$3283

51 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$2627

Save $656

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the 6246BP10811 6246BP10811A6246BP10811B6246BP10811C6246BP10811D6246BP10811E6246BP10811F6246BP10811G6246BP10811H6246BP10811I6246BP10811J6246BP10811K6246BP10811L6246BP10811M6246BP10811N6246BP10811O6246BP10811P6246BP10811Q6246BP10811R6246BP10811S6246BP10811T6246BP10811U6246BP10811V6246BP10811W6246BP10811X6246BP10811Y6246BP10811Z

Common misspellings:
  • 62A6BP10811
  • 62468P10811
  • 6246BPl0811
  • 6246BP1o811
  • 6246BP10b11
  • 6246BP108l1
  • 6246BP1081l
  • 6246BP10811

ABB Block 115Vac/125Vdc Low Leak Isol I/O, w/o Failed Sw Diag, 8 Ckt

Technical Information

The ABB 6246BP10811 block is a complete I/O block which is rated for 115 Volts AC/125 Volts DC. The 6246BP10811 I/O block does not support failed switch diagnostics. The 6246BP10811 I/O block has 2 main components: a terminal assembly with the catalog number 6246BP10830 and an electronics assembly with the catalog number 6246BP10821. Eight I/O channels are available on the 6246BP10811 I/O block and they can be used to interface with discrete AC / DC input devices, including sensors and actuators.  The supported operating voltage ranges are 93 to 132 Volts AC and 105 to 140 Volts DC. The I/O circuits support 47 to 63 Hertz AC line frequencies with a maximum ripple of 10%. The power supply dropout time is 1 cycle or 10 milliseconds.



The environmental specifications for the 6246BP10811 I/O block include a 32 to 140 degrees Fahrenheit operating temperature range, a -40 to 212 degrees Fahrenheit storage temperature range, and 5 to 95% non-condensing ambient relative humidity range. The approximate shipping weight of the I/O block is 4 pounds. The I/O channels on the 6246BP10811 I/O block can be configured as inputs, as outputs, and as tri-state inputs. The input diagnostics supported by the 6246BP10811 I/O block are open wire, loss of I/O power, and overtemperature diagnostics. The 6246BP10811 I/O block requires 8 Watts of control power. The heat dissipation for an I/O block with all 8 channels configured as inputs will be equal to or greater than 17.8 Watts. The heat dissipation for an I/O block with all 8 channels configured as outputs and sourcing 2 Amps of current will be equal to or less than 45.6 Watts. ABB recommends use of a single wire with a 12 AWG wire size or 2 wires with a 14 AWG wire size for terminal wiring.
