6245BP10710

★ ★ ★ ★ ★ Rated 4.5/5 Based on 6 ratings.

Rate your purchase of the 6245BP10710

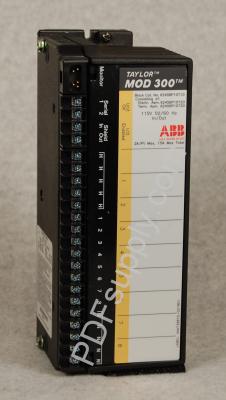

ABB Taylor Mod 300 | 623 624 Series | 6245BP10710 | Image

SKU 2175108  UPC 0167365062651

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$1251

119 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$1001

Save $250

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the 6245BP10710 6245BP10710A6245BP10710B6245BP10710C6245BP10710D6245BP10710E6245BP10710F6245BP10710G6245BP10710H6245BP10710I6245BP10710J6245BP10710K6245BP10710L6245BP10710M6245BP10710N6245BP10710O6245BP10710P6245BP10710Q6245BP10710R6245BP10710S6245BP10710T6245BP10710U6245BP10710V6245BP10710W6245BP10710X6245BP10710Y6245BP10710Z

Common misspellings:
  • 62A5BP10710
  • 62458P10710
  • 6245BPl0710
  • 6245BP1o710
  • 6245BP107l0
  • 6245BP1071o
  • 6245BP10710

ABB Block 115Vac I/O Low Leakage 8 Circuits

Technical Information

The ABB 6245BP10710 I/O block is a complete low-leakage I/O block which is rated for 115 Volts AC and 125 Volts DC. It has 2 main components which are an electronics assembly (catalog number 6245BP10720) and a terminal assembly (catalog number 6245BP10730). The 6245BP10710 I/O block is designed for applications that require interfacing with discrete AC input sensors. The low-leakage 6245BP10710 I/O block is designed for applications where the control of loads which draw low currents without additional load resistance is required. The 6245BP10710 I/O block transmits discrete signals to the controller. When receiving input data, the block receives a “1” for active inputs and a “0” for inactive inputs. Similarly, when transmitting output data, the block transmits a “1” and a “0” for each active and inactive output circuit, respectively.



There are 8 circuits on the 6245BP10710 I/O block which can be configured as inputs and as outputs. Input characteristics for the non-tri-state input in the off-state include a minimum voltage across the device of 60 Volts rms and maximum leakage through the input device of 1.5 milliamps. The input characteristics for the non-tri-state input in the on-state include a minimum voltage across the device of 20 Volts rms and a maximum switch current threshold of 6 milliamps rms. The input characteristics for the tri-state input in the off-state include an acceptable voltage across the input device of 16 to 40 Volts rms. The input characteristics for the tri-state input in the on-state include a maximum voltage across the input device of 4 Volts rms. The input processing time is 2 milliseconds plus the filter delay. The configurable input filter times are 10 to 100 milliseconds in 10-millisecond increments.
