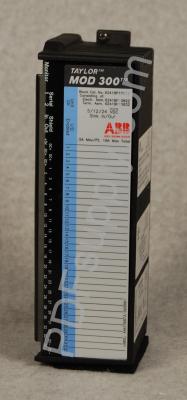

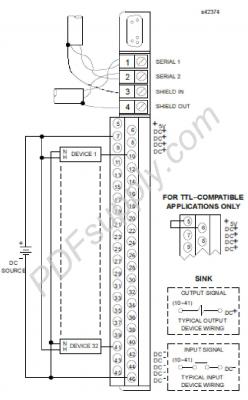

Electronic Assembly for 6241BP10812

Technical Information

The ABB 6241BP10822 electronics assembly is an electronics assembly rated for 5, 12, or 24 Volts DC of sink voltage. The ABB 6241B I/O blocks are available in both sink and source versions. The 6241BP10822 electronics assembly is compatible with the ABB 6241BP10812 sink I/O block which is a 32-circuit discrete input and output block. When used with a 12/24 Volts supply, the operating voltage range of the 6241BP10822 electronics assembly is 10 to 30 Volts DC. When used with a 5 Volts DC supply, the operating voltage range is 4.75 to 5.25 Volts DC. The maximum allowable ripple is 10% for 12/24 Volts DC supply and 1% for 5 Volts DC supply. The power supply dropout times are 4 milliseconds at 12 Volts and 20 milliseconds at 24 Volts.



The ABB 6241B blocks and their components like the 6241BP10822 electronics assembly come with one LED for indicating the status of the I/O block and one LED for indicating the status of the I/O on the block. The rated block to block isolation is 1500 Volts. The minimum resistance of the insulation on the block is 2.2 megaohms. The input on-state ranges for the 6241BP10812 block with 5 Volts, 12 Volts and 24 Volts DC rated voltage are 0 to 0.8 Volts DC, 0 to 4 Volts DC, and 0 to 6 Volts DC, respectively. The input off-state ranges for the 6241BP10812 block with 5 Volts, 12 Volts, and 24 Volts DC rated voltage are 2 to 5 Volts DC, 7 to 12 Volts DC, and 12 to 24 Volts DC, respectively. The typical input impedance rating is 3.3 kiloohms. The shipping weight of the I/O block is 4 pounds.
