6241BP10421

★ ★ ★ ★ ★ Rated 4.7/5 Based on 9 ratings.

Rate your purchase of the 6241BP10421

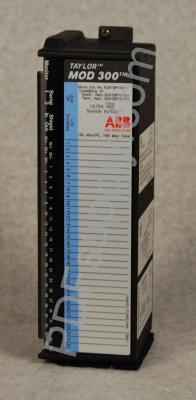

ABB Taylor Mod 300 | 623 624 Series | 6241BP10421 | Image

SKU 2177304  UPC 07202293296210

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$1136

136 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$909

Save $227

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the 6241BP10421 6241BP10421A6241BP10421B6241BP10421C6241BP10421D6241BP10421E6241BP10421F6241BP10421G6241BP10421H6241BP10421I6241BP10421J6241BP10421K6241BP10421L6241BP10421M6241BP10421N6241BP10421O6241BP10421P6241BP10421Q6241BP10421R6241BP10421S6241BP10421T6241BP10421U6241BP10421V6241BP10421W6241BP10421X6241BP10421Y6241BP10421Z

Common misspellings:
  • 62A1BP10421
  • 624lBP10421
  • 62418P10421
  • 6241BPl0421
  • 6241BP1o421
  • 6241BP10A21
  • 6241BP1042l
  • 6241BP10421

Electronic Assembly for 6241BP10411

Technical Information

The ABB 6241BP10421 electronics assembly is the electronics assembly for the 12/24 Volts DC rated source I/O block with the catalog number 6241BP10411. The configuration of the I/O block resides in the 6241BP10421 electronics assembly. The other main component of the 6241BP10411 I/O block is the terminal assembly. The mechanical specifications for the I/O block include a shipping weight of 4 pounds. The environmental specifications for the 6241BP10421 electronics assembly and the whole block include 5 to 95% non-condensing relative humidity, 32 to 140 degrees Fahrenheit of ambient operating temperature and -40 to 212 degrees Fahrenheit of ambient storage temperature. With a single 12/24 Volts DC source, the operating voltage range is 10 to 30 Volts DC. The DC power source can have a maximum ripple of 10%. While the typical power requirement of the I/O block is 150 milliamps, it can go to a maximum value of 300 milliamps.

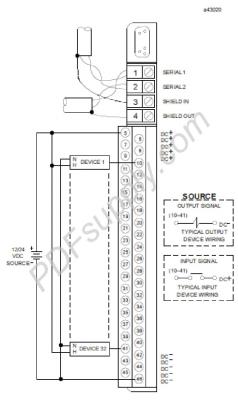

The I/O block that the 6241BP10421 electronics assembly is made for has 32 circuits which can be configured as discrete inputs and outputs. The circuits configured as inputs can be connected to contactors and lamps, and the circuits configured as outputs can be connected to proximity switches (2-wire and 3-wire). All of the output devices connected to the I/O block are connected between the channel and negative side of the power supply, whereas input devices are connected between the channel terminal and the positive side of the power supply. AWG 14 copper wire should be used for terminal wiring. If the 6241BP10411 block is used as a BSM controller, it requires a low voltage BSM and the block must be connected to a 24 Volts DC power supply.
