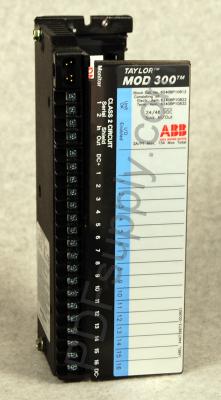

Terminal Assembly for 6240BP10812

Technical Information

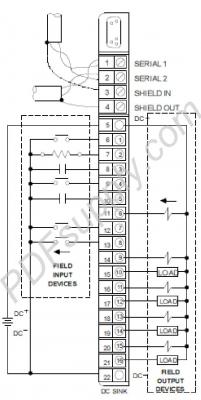

The ABB 6240BP10832 terminal assembly is a terminal assembly which is compatible with an I/O block with the catalog number 6240BP10812 which is rated for 24/48 Volts DC and is a sink type block. Sink blocks such as the 6240BP10812 block are designed to receive current from field devices. The 6240BP10812 block can only be used with electromechanical sensors and 3-wire solid-state sensors. The 6240BP10812 block is designed for use in applications where the supply voltage exceeds 30 Volts. The number of circuits available on the 6240BP10812 terminal assembly is 16. The block I/Os can be configured as either discrete inputs or discrete outputs. The rated power supply dropout time is 10 milliseconds. The required operation power for the 6240BP10832 terminal assembly and the whole block, excluding loads, is 150 milliamps typical and 300 milliamps maximum.



The maximum heat dissipation for the 6240BP10812 block and its components, including the 6240BP10832 terminal assembly, is 68.8 Watts when all 16 outputs are active at 2 Amps current. The I/O block supports multiple input diagnostics including open wire, over temperature, and failed switch diagnostics. The input processing time, excluding the filter delay, is 1.7 milliseconds. The typical input impedance is 5.6 kiloohms. The rated on-state voltages for the inputs on the I/O block are 0 to 8 Volts DC with a 24 Volts DC supply and 0 to 16 Volts DC with a 48 Volts DC supply. The rated off-state voltages for inputs on the I/O block are 17 to 24 Volts DC with a 24 Volts DC supply and 34 to 48 Volts DC with a 48 Volts DC supply. The output diagnostics include short circuit, overload, no load, and failed switch diagnostics. The steady state output current supported by the 6240BP10832 terminal assembly and the block as a whole is 2 Amps per circuit.
