6240BP10822

★ ★ ★ ★ ★ Rated 4.4/5 Based on 10 ratings.

Rate your purchase of the 6240BP10822

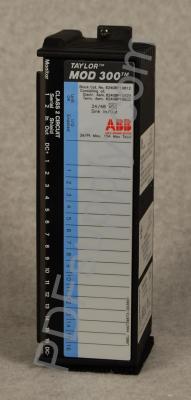

ABB Taylor Mod 300 | 623 624 Series | 6240BP10822 | Image

SKU 2178323  UPC 0641867438065

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$1136

193 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$909

Save $227

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the 6240BP10822 6240BP10822A6240BP10822B6240BP10822C6240BP10822D6240BP10822E6240BP10822F6240BP10822G6240BP10822H6240BP10822I6240BP10822J6240BP10822K6240BP10822L6240BP10822M6240BP10822N6240BP10822O6240BP10822P6240BP10822Q6240BP10822R6240BP10822S6240BP10822T6240BP10822U6240BP10822V6240BP10822W6240BP10822X6240BP10822Y6240BP10822Z

Common misspellings:
  • 62A0BP10822
  • 624oBP10822
  • 62408P10822
  • 6240BPl0822
  • 6240BP1o822
  • 6240BP10b22
  • 6240BP10822

Electronic Assembly for 6240BP10812

Technical Information

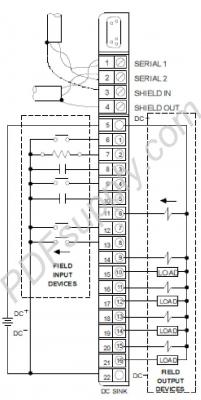

The product code 6240BP10822 is used for an electronic assembly that is made for the 6240BP10812 I/O block. The Model 300 electronic assembly is a part of Series 623/624 and it is produced by ABB/Taylor. The manufacturer of the 623/624 blocks manufactures terminal assemblies and electronic assemblies as separate products and it provides different block types. The block is available as source I/O option or sink I/O option. Additionally, these units are made for both 24 Volts DC and 24/48 Volts DC rated power sources. The current range for the power source is 150 to 300 milliamps. The maximum heat dissipation is 68.8 Watts when all circuits are used. The block that the 6240BP10822 electronic assembly is made for provides 16 circuits for both inputs and outputs. The circuits can also be a mix of inputs and outputs, if necessary.



The 6240BP10822 electronic assembly features 1500 Volts of block-to-block isolation and a 10% ripple for input voltage. The power supply dropout time is 10 milliseconds. The unit has 5 to 100 milliseconds of input filter time and this filter time can be selected. The input impedance of the unit is 1.8 kiloohms and typical input processing time is 1.7 milliseconds. The 6240BP10822 electronic assembly has an output turn-on delay of 1 millisecond and a minimum recommended load of 50 milliamps. The output voltage drop is a maximum of 2 Volts and the maximum switching frequency is once per second. The ABB/Taylor block has an output current of 2 Amps per circuit for steady state operation and a maximum inrush current of 10 Amps. The block output current is 15 Amps at 35 degrees Celsius and the unit has 1 milliamp of output leakage current for the off-state.
