GE / IP FANUC Series 90/30 In Stock
SKU 2173126 UPC 0334177974704
All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.
PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.
Other Available Revisions for the 6240BP10812 6240BP10812A6240BP10812B6240BP10812C6240BP10812D6240BP10812E6240BP10812F6240BP10812G6240BP10812H6240BP10812I6240BP10812J6240BP10812K6240BP10812L6240BP10812M6240BP10812N6240BP10812O6240BP10812P6240BP10812Q6240BP10812R6240BP10812S6240BP10812T6240BP10812U6240BP10812V6240BP10812W6240BP10812X6240BP10812Y6240BP10812Z
ABB Block 24/48Vdc Sink I/O 16 Circuits, 3 Wire Sensor Compatible

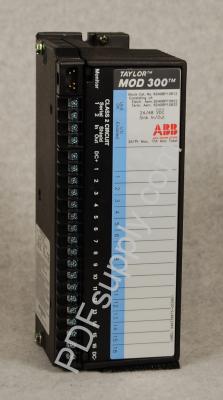

The ABB/Taylor Model 300 component with the product code 6240BP10812 is part of series 623/624 and it is built for use in industrial environments. This sink I/O block provides 16 circuits for input and output purposes. Additionally, the circuits can be configured for a combination of inputs and outputs. The block is designed for 24/48 Volts DC power sources and it is compatible with the 3-wire sensors that are typically used with these kinds of components. The 6240BP10812 block is also compatible with system elements such as the Genius bus controller, the Genius hand-held monitors, and different types of modules. The 6240BP10812 block component is designed to handle various errors that may occur due to internal temperature, short circuits, and failed switch errors.
The 6240BP10812 block provides a built-in thermal sensor, automatic output capabilities through a short circuit level sensor, automatic detection of electrical malfunctions, and no load and overload situation diagnostics. The 6240BP10812 block is made for DC power sources with a typical current of 150 milliamps and a maximum current of 300 milliamps. The block needs up to 10 milliseconds for the power supply dropout and it has a voltage ripple of 10% maximum. The 6240BP10812 block has an output current of 15 Amps at a temperature of 35 degrees Celsius and an off-state output leakage current of 1 milliamp. Additionally, the output voltage drop is a maximum of 2 Volts at an inrush current of 2 Amps. The block component switches frequency once per second at the high inrush current and its minimum load current is 50 milliamps with no load enabled.
Common related search terms: BatteryConfiguration, Datasheet, Dimension, Firmware, Manual, PDF, Price, Repair, Specification, Troubleshoot, User-Manual, Wiring,
