6240BP10811

★ ★ ★ ★ ★ Rated 4.6/5 Based on 9 ratings.

Rate your purchase of the 6240BP10811

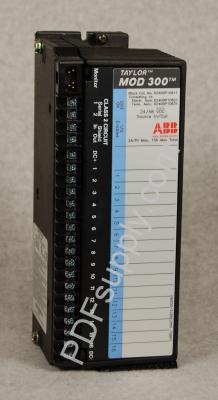

ABB Taylor Mod 300 | 623 624 Series | 6240BP10811 | Image

SKU 2178025  UPC 01832773266510

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Other Available Revisions for the 6240BP10811 6240BP10811A6240BP10811B6240BP10811C6240BP10811D6240BP10811E6240BP10811F6240BP10811G6240BP10811H6240BP10811I6240BP10811J6240BP10811K6240BP10811L6240BP10811M6240BP10811N6240BP10811O6240BP10811P6240BP10811Q6240BP10811R6240BP10811S6240BP10811T6240BP10811U6240BP10811V6240BP10811W6240BP10811X6240BP10811Y6240BP10811Z

Common misspellings:
  • 62A0BP10811
  • 624oBP10811
  • 62408P10811
  • 6240BPl0811
  • 6240BP1o811
  • 6240BP10b11
  • 6240BP108l1
  • 6240BP1081l
  • 6240BP10811

ABB Block 24/48Vdc Source I/O 16 Circuits, 3 Wire Sensor Compatible

Technical Information

The product code 6240BP10811 is used for a source I/O block manufactured by ABB/Taylor. The component is compatible with a sensor with a 3-wire design and it has a voltage rating of 24/48 Volts DC. The 6240BP10811 block is part of the ABB 623/624 series and it carries a Model 300 marking. The design of the block itself allows for the individual configuration of each circuit. This means that each of the 16 available circuits can be configured as an input, an output, or a tristate input. Additionally, the 6240BP10811 block can be configured as a combination block that allows for different settings of output feedback. In addition to that, it is common for the block to be configured as an inputs-only or outputs-only block.



Besides the source block elements, the manufacturer provides sink elements for the same voltage ranges (24/48 Volts DC or 24 Volts DC). The 6240BP10811 block has circuits with LED indicators which indicate parameters such as the load’s actual state or threshold voltage. The 6240BP10811 block comes with certain diagnostics features that can ensure that the block is always working properly. In order to resolve issues caused by current irregularities or power shutdowns, the block includes the following diagnostics features: overtemperature, short circuit, failed switch, open wire, and overload diagnostics. The typical operating temperature range for the 6240BP10811 is 0 to 60 degrees Celsius or 32 to 140 degrees Fahrenheit. Additionally, the storage temperature range is -40 to 100 degrees Celsius (-40 to 212 degrees Fahrenheit) and the relative humidity should be between 5 and 95% (non-condensing).
