6240BP10431

★ ★ ★ ★ ★ Rated 4.7/5 Based on 8 ratings.

Rate your purchase of the 6240BP10431
ABB Taylor Mod 300 | 623 624 Series | 6240BP10431 | Image

SKU 2173012  UPC 0665380692889

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$302

41 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$242

Save $60

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the 6240BP10431 6240BP10431A6240BP10431B6240BP10431C6240BP10431D6240BP10431E6240BP10431F6240BP10431G6240BP10431H6240BP10431I6240BP10431J6240BP10431K6240BP10431L6240BP10431M6240BP10431N6240BP10431O6240BP10431P6240BP10431Q6240BP10431R6240BP10431S6240BP10431T6240BP10431U6240BP10431V6240BP10431W6240BP10431X6240BP10431Y6240BP10431Z

Common misspellings:
  • 62A0BP10431
  • 624oBP10431
  • 62408P10431
  • 6240BPl0431
  • 6240BP1o431
  • 6240BP10A31
  • 6240BP1043l
  • 6240BP10431

Terminal Assembly for 6240BP10411

Technical Information

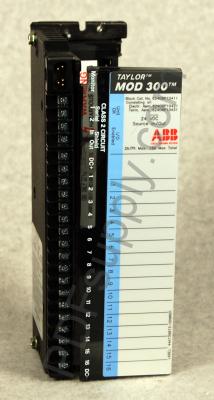

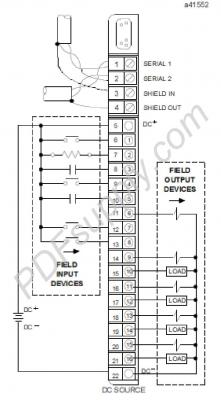

The ABB/Taylor component with the catalog number 6240BP10431 is an industrial terminal assembly that is designed with safety and reliability in mind. This Model 300 terminal assembly is part of the 623/624 series and it falls under the DC I/O block category. The assembly has 16 circuits and a rated voltage of 24 Volts DC. The unit is compatible with solid-state sensors with either 2 wires or 3 wires and it can also be used with sensors of the electromechanical type. The 6240BP10431 terminal assembly is part of a system that has circuits that can be configured exactly according to the requirements of an application. The discrete circuits can be used for inputs, tristate inputs, and outputs. In order to connect the output circuits directly to input circuits, the users do not need any additional components.



The 6240BP10431terminal assembly has many features that provide additional flexibility and customization options. Some of these features are CPU redundancy, bus switching module control, selectable input filter times, and output pulse test capabilities. It is important to note that the 623/624 blocks are compatible with the GE Genius bus controllers and various modules like the PCIM and QBIM modules. Additionally, these blocks can be used with optional hand-held monitors from the Genius series. The 6240BP10431 terminal assembly has a block to block isolation voltage of 1500 Volts and a heat dissipation rating of 68.8 Watts. The block comes with LED indicators for each circuit and it can be used in a temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit). The unit is connected to a DC power source with a typical current rating of 150 milliamps and maximum current of 300 milliamps.
