6240BP10421

★ ★ ★ ★ ★ Rated 4.8/5 Based on 7 ratings.

Rate your purchase of the 6240BP10421

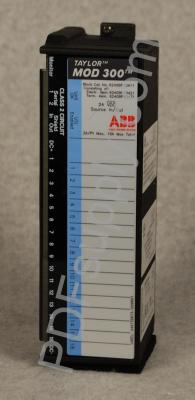

ABB Taylor Mod 300 | 623 624 Series | 6240BP10421 | Image

SKU 2176433  UPC 0705831920595

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Other Available Revisions for the 6240BP10421 6240BP10421A6240BP10421B6240BP10421C6240BP10421D6240BP10421E6240BP10421F6240BP10421G6240BP10421H6240BP10421I6240BP10421J6240BP10421K6240BP10421L6240BP10421M6240BP10421N6240BP10421O6240BP10421P6240BP10421Q6240BP10421R6240BP10421S6240BP10421T6240BP10421U6240BP10421V6240BP10421W6240BP10421X6240BP10421Y6240BP10421Z

Common misspellings:
  • 62A0BP10421
  • 624oBP10421
  • 62408P10421
  • 6240BPl0421
  • 6240BP1o421
  • 6240BP10A21
  • 6240BP1042l
  • 6240BP10421

Electronic Assembly for 6240BP10411

Technical Information

The source I/O block electronic assembly with the catalog number 6240BP10421 is designed and manufactured by ABB/Taylor and it is intended for general industrial applications. The 6240BP10421 electronic assembly is part of ABB Series 300 and it is basically an electronic assembly for the 6240BP10411 block. The unit is 2-wire or 3-wire sensor compatible and it has a voltage rating of 24 Volts DC. The 6240BP10421 electronic assembly has 16 circuits and it weighs approximately 1.4 kilograms (3 pounds). The dimensions of the block include a height of 76 millimeters (3 inches), a width of 203 millimeters (8 inches) and a depth of 102 millimeters (4 inches). The module operates within a temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) and it has a storage temperature range of -40 to 100 degrees Celsius (-40 to 212 degrees Fahrenheit).



Other environmental specifications of the 6240BP10421 electronic assembly include a relative humidity range of 5 to 95% (non-condensing) and vibration rating of 5 to 10 Hertz with 5.08 millimeters (0.2 inches) displacement or 10 to 200 Hertz at 1 G. The 6240BP10421 electronic assembly includes an output current of 2 Amps per circuit and maximum inrush current of 10 Amps for the duration of 10 milliseconds. The required current range for the DC power is 150 milliamps typical or 300 milliamps maximum. The component includes multiple LED indicators and a block to block isolation of 1500 Volts. The heat dissipation rating of the module is 68.8 Watts and the dropout time for its power supply is 10 milliseconds. The output voltage drop is maximum of 2 Volts at an inrush current rating of 2 Amps.
