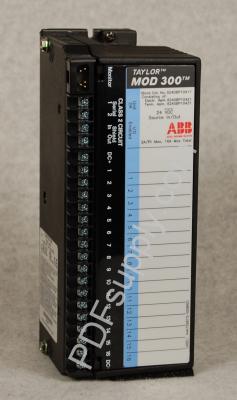

ABB Taylor Mod 300 | 623 624 Series | 6240BP10411 | Image

SKU 2172066  UPC 0199099308118

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$676

26 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$541

Save $135

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the 6240BP10411 6240BP10411A6240BP10411B6240BP10411C6240BP10411D6240BP10411E6240BP10411F6240BP10411G6240BP10411H6240BP10411I6240BP10411J6240BP10411K6240BP10411L6240BP10411M6240BP10411N6240BP10411O6240BP10411P6240BP10411Q6240BP10411R6240BP10411S6240BP10411T6240BP10411U6240BP10411V6240BP10411W6240BP10411X6240BP10411Y6240BP10411Z

Common misspellings:
  • 62A0BP10411
  • 624oBP10411
  • 62408P10411
  • 6240BPl0411
  • 6240BP1o411
  • 6240BP10A11
  • 6240BP104l1
  • 6240BP1041l
  • 6240BP10411

ABB Block 24Vdc Source I/O 16 Circuits, 2/3 Wire Sensor Compatible

Technical Information

The 6240BP10411 DC I/O Block is a source type, 24 Volts DC I/O block from ABB. It has 16 discrete channels that can be configured as inputs, outputs, or tri-state inputs individually. The 6240BP10411 DC I/O Block comes as a complete device with the I/O block, electronic assembly, and terminal block assembly all included. The weight of the module is 4 pounds and the recommended operating temperature range is 0 to 60 degrees Celsius. The physical characteristics of the module include 18 to 56 Volts DC of operating voltage, 1500 Volts of block to block isolation, 68.8 Watts of heat dissipation, and 2.2 megaohms of insulation resistance.

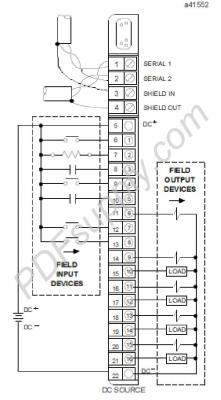

The 6240BP10411 DC Source I/O Block consists of electromechanical sensors and 2-wire and 3-wire solid-state sensors. This module must be used with a 24 Volts DC power supply. All the output devices can be connected to the channels of this source I/O block and the negative pin of the power supply. The input devices must be connected to the positive side of the power supply. It uses Terminals 6 to 21 of the terminal block for 16 I/O channels. Terminal 6 corresponds to I/O Channel 1. It provides the software configuration facilities to configure each channel as an input or output. The 6240BP10411 DC Source I/O Block accepts a single AWG #12 wire or 2 AWG #14 wires. It has LEDs to indicate its operating status. If an input acts as a tri-state input, its indicator LED glows dimly to indicate that the input is in the off-state. It supports diagnostic facilities including open wire detection, overload, no-load, and failed switch diagnostics.
