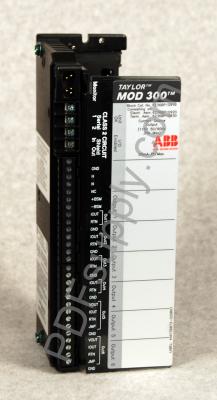

ABB Taylor Mod 300 | 623 624 Series | 6236BP10930 | Image

SKU 2170122  UPC 0495588547144

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Other Available Revisions for the 6236BP10930 6236BP10930A6236BP10930B6236BP10930C6236BP10930D6236BP10930E6236BP10930F6236BP10930G6236BP10930H6236BP10930I6236BP10930J6236BP10930K6236BP10930L6236BP10930M6236BP10930N6236BP10930O6236BP10930P6236BP10930Q6236BP10930R6236BP10930S6236BP10930T6236BP10930U6236BP10930V6236BP10930W6236BP10930X6236BP10930Y6236BP10930Z

Common misspellings:
  • 62368P10930
  • 6236BPl0930
  • 6236BP1o930
  • 6236BP1093o
  • 6236BP10930

Terminal Assembly for 6236BP10910

Technical Information

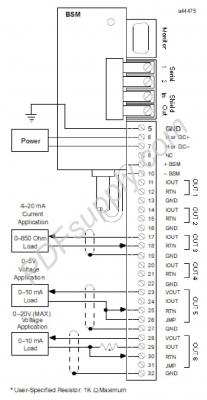

The 6236BP10930 Terminal Assembly belongs to the ABB TRIO family of current source analog output blocks. It ensures safe and reliable field wiring connections for I/O blocks. It must be permanently installed in the output block. It has mechanical keying that only accepts the compatible electronic assembly model. The 6236BP10930 Terminal Assembly is designed for use with the 6236B current source analog output block which has 6 output channels. The power requirement of the module is 115 Volts AC or 125 Volts DC. The output loads can be connected to the isolated output terminal and return terminal for providing current in the range of 4 to 20 milliamps. Terminals 1 to 4 are reserved for standard TRIO block field bus connectors. The field devices can be connected to Terminals 11 through 32. Terminals 6 and 7 bring power to the system.



The 6236BP10930 Terminal Assembly accepts AWG #22 and AWG #14 gauge wires. The storage temperature range of the module is from -40 to 100 degrees Celsius. It is advised to power down the system before installing the 6236BP10930 Terminal Assembly module then preconfigure the terminal assembly with the electronic assembly and HHM by assigning the proper device block address and baud rate before the installation. Remove the power only from the block that is being worked on while continuing the operation of the other devices that are attached to the power supply. During installation, make sure not to touch the connector pins at the base of the terminal assembly to avoid electrical shock hazards. It is essential to upgrade the electronic assembly if the terminal assembly is replaced with the newest model.
