6236BP10920

★ ★ ★ ★ ★ Rated 4.7/5 Based on 3 ratings.

Rate your purchase of the 6236BP10920

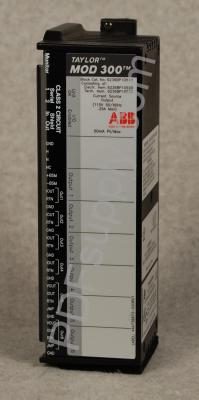

ABB Taylor Mod 300 | 623 624 Series | 6236BP10920 | Image

SKU 2176220  UPC 0580265820013

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Other Available Revisions for the 6236BP10920 6236BP10920A6236BP10920B6236BP10920C6236BP10920D6236BP10920E6236BP10920F6236BP10920G6236BP10920H6236BP10920I6236BP10920J6236BP10920K6236BP10920L6236BP10920M6236BP10920N6236BP10920O6236BP10920P6236BP10920Q6236BP10920R6236BP10920S6236BP10920T6236BP10920U6236BP10920V6236BP10920W6236BP10920X6236BP10920Y6236BP10920Z

Common misspellings:
  • 62368P10920
  • 6236BPl0920
  • 6236BP1o920
  • 6236BP1092o
  • 6236BP10920

Electronic Assembly for 6236BP10910

Technical Information

The 6236BP10920 Electronic Assembly is designed by ABB for the 6236B analog output blocks. It is a removable device that can be easily connected to the baseplate. This module is specifically designed for remote I/O modules. The compatible I/O module for this electronic assembly is the 6236BP10910 module and the terminal assembly is the 6236BP10930. The 6236BP10920 Electronic Assembly contains the intelligent processing unit of the I/O block which performs diagnostics and computational tasks. The compatible terminal assembly of this module is the 6236BP10930. It supports output feedback error diagnostics facilities to detect the wiring errors and hardware faults within the output circuit. It is compatible with all the bus controller modules for providing effective and efficient performance.



The 6236BP10920 Electronic Assembly can be grounded by physically connecting it into the terminal assembly of the system. It is a removable device that can be easily unplugged from the terminal assembly by using a 6201F block puller. The indicator LEDs of the module are powered by the electronic assembly. During installation, make sure that the enclosure of the module provides proper cooling for the electronic assembly. The 6236BP10920 Electronic Assembly has a small and rugged design to ensure reliability. The dimensions of the module are 3 x 8 x 4 inches and it weighs 4 pounds. It is possible to remove the electronic assembly without reconfiguring the block and without removing the field wiring. It offers output scaling to engineering units' values. It also supports handheld monitors to display the 16-bit output data sent to the block. It can be configured offline or by using the handheld monitor.
