6236BP10810

★ ★ ★ ★ ★ Rated 4.6/5 Based on 12 ratings.

Rate your purchase of the 6236BP10810

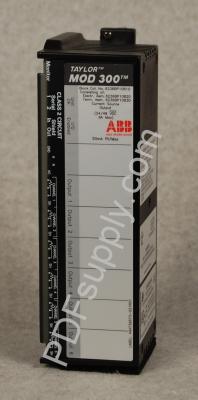

ABB Taylor Mod 300 | 623 624 Series | 6236BP10810 | Image

SKU 2172157  UPC 0128952245567

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$1251

8 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$1001

Save $250

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the 6236BP10810 6236BP10810A6236BP10810B6236BP10810C6236BP10810D6236BP10810E6236BP10810F6236BP10810G6236BP10810H6236BP10810I6236BP10810J6236BP10810K6236BP10810L6236BP10810M6236BP10810N6236BP10810O6236BP10810P6236BP10810Q6236BP10810R6236BP10810S6236BP10810T6236BP10810U6236BP10810V6236BP10810W6236BP10810X6236BP10810Y6236BP10810Z

Common misspellings:
  • 62368P10810
  • 6236BPl0810
  • 6236BP1o810
  • 6236BP10b10
  • 6236BP108l0
  • 6236BP1081o
  • 6236BP10810

Block 24/48Vdc Analog Current Source 6 Outputs 4-20ma

Technical Information

The 6236BP10810 Analog Output Block is a current source output module made by ABB. It consists of 6 source type output channels for interfacing the field devices that require 4 to 20 milliamps rated current signals. The 6236BP10810 Analog Output Block has a microprocessor that performs computational tasks and analog signal scaling. This block is suitable to install individually on junction boxes, racks, and machines. The dimensions of the module are approximately 9 x 4 x 3 inches. The users have the capability to install any combination of these modules on the I/O bus. The specifications of the power supply of this module include 18 to 56 Volts DC of power supply voltage, 600 milliamps of current, and 10 milliseconds of power supply dropout time.

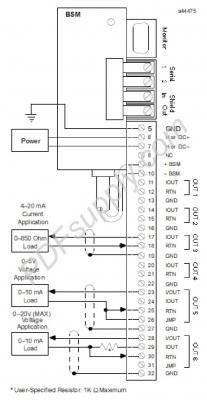

The 6236BP10810 Analog Output Block has 6 independent output channels that are electrically common to each other. The output channels are also isolated from the other circuits within the module. It comes as a complete module that contains both electronics and terminal assemblies. It uses a dual 12-bit digital to analog converter to independently drive the control current. A single output circuit can drive 4 to 20 milliamps of current via 0 to 850 ohms of resistance. The block grounding must perform according to the local electrical codes. The 6236BP10810 Analog Output Block provides diagnostic facilities such as over range, under range, and feedback error diagnostics. When installing multiple modules close together, it is recommended to perform the field wiring before the installation for easy and quick connections. This module can also be used as a bus switching module that accepts 24/48 Volts of power. Terminals 9 and 10 can be used for BSM connections.
