6235BP10920

★ ★ ★ ★ ★ Rated 4.3/5 Based on 7 ratings.

Rate your purchase of the 6235BP10920

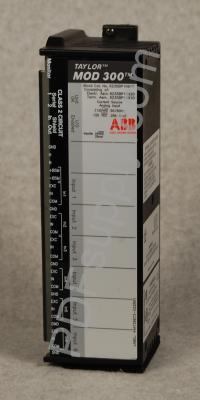

ABB Taylor Mod 300 | 623 624 Series | 6235BP10920 | Image

SKU 2175427  UPC 0811145792244

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$1259

37 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$1008

Save $251

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the 6235BP10920 6235BP10920A6235BP10920B6235BP10920C6235BP10920D6235BP10920E6235BP10920F6235BP10920G6235BP10920H6235BP10920I6235BP10920J6235BP10920K6235BP10920L6235BP10920M6235BP10920N6235BP10920O6235BP10920P6235BP10920Q6235BP10920R6235BP10920S6235BP10920T6235BP10920U6235BP10920V6235BP10920W6235BP10920X6235BP10920Y6235BP10920Z

Common misspellings:
  • 62358P10920
  • 6235BPl0920
  • 6235BP1o920
  • 6235BP1092o
  • 6235BP10920

Electronic Assembly for 6235BP10910

Technical Information

The 6235BP10920 Electronic Assembly is designed by ABB for the 6235B analog input modules. It has the main processing unit which performs the advanced diagnostics and communication tasks within the I/O system that it is installed in. The 6235BP10920 Electronic Assembly comes with a compact, small, and rugged design with high levels of durability and reliability. Some of the special diagnostic facilities offered by this module include low and high alarm reporting, over range and under range detection, open-wire detection, and internal fault reporting. It also powers the indicator LEDs on the module, which are the “Unit OK” and “I/O Enabled” LEDs.



The 6235BP10920 Electronic Assembly consists of a microprocessor unit that acts as the central processing unit of the entire I/O system. The maximum operating temperature of the I/O block is 60 degrees Celsius. It drives the indicator LEDs of the I/O module from its logic side. To remove the 6235BP10920 Electronic Assembly, open the swing-away door of the block and unscrew the retaining screws to pull the assembly out from the upper vent slot of the block. It is advised to test the surface of the electronic assembly before removing it from the block because the operating block can be hot to the touch. In order to ground the electronic assembly, make sure that it is properly connected to the terminal block of the system. The 6235BP10920 Electronic Assembly is a removable device that can be easily added to or removed from the I/O system without disturbing the field wiring.
