6235BP10910

★ ★ ★ ★ ★ Rated 4.4/5 Based on 8 ratings.

Rate your purchase of the 6235BP10910

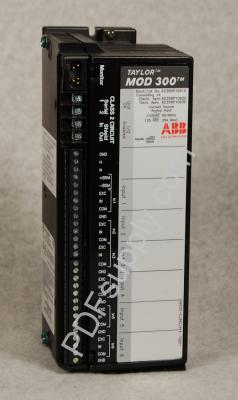

ABB Taylor Mod 300 | 623 624 Series | 6235BP10910 | Image

SKU 2178205  UPC 097990130039

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Reman

$3091

13 In Stock

✓  2 Year PDF Supply Warranty

*What is Remanufactured?

Ships .

Repair Service

$2473

Save $618

5-10 Days

✓  2 Year PDF Supply Warranty

*What is Fast Repair?

Repair Completion:
5-10 Days

Other Available Revisions for the 6235BP10910 6235BP10910A6235BP10910B6235BP10910C6235BP10910D6235BP10910E6235BP10910F6235BP10910G6235BP10910H6235BP10910I6235BP10910J6235BP10910K6235BP10910L6235BP10910M6235BP10910N6235BP10910O6235BP10910P6235BP10910Q6235BP10910R6235BP10910S6235BP10910T6235BP10910U6235BP10910V6235BP10910W6235BP10910X6235BP10910Y6235BP10910Z

Common misspellings:
  • 62358P10910
  • 6235BPl0910
  • 6235BP1o910
  • 6235BP109l0
  • 6235BP1091o
  • 6235BP10910

Block 115Vac/125Vdc Analog Current Source 6 Inputs 4-20ma

Technical Information

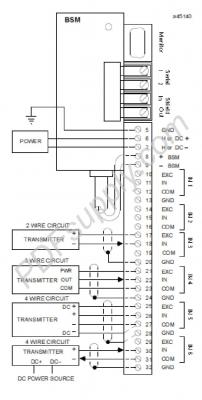

The 6235BP10910 Analog Input Block is a current source input module manufactured by ABB. It has 6 input channels that can be used to interface with field devices. This device requires 24 Volts DC or 48 Volts DC power source. The 6235BP10910 Analog Input Block can be used as a bus switching module that only requires a low level of voltage. It also provides 6 input channels even if it is configured as a BSM controller. The inputs of the module accept 4 to 20 milliamps of input current and each input channel uses a 24 Volts rated current loop power supply. It can be installed on machines, racks, or panels individually or as a group in any sequence or combination.



The 6235BP10910 Current Source Analog Input Block uses a voltage to frequency converter as well as a counter for converting the current to a digital value. It also offers a programmable conversion time of 16 to 400 milliseconds which increases the accuracy of the converted value. Some of the characteristics of the input channels are 4 to 20 milliamps of the input range, 0 to 25 milliamps of over-range capacity, 1 microamp of input resolution, and 0.1% of the full-scale reading input accuracy at 25 degrees Celsius. The 6235BP10910 Current Source Analog Input Block has 2 LED indicators which are the “Unit OK” and “I/O Enabled” indicators. It has an enclosure that is made of cast aluminum. The approximate weight of the module is 4 pounds. This self-contained, easy to use, and configurable I/O module helps to interface field devices in an application to the I/O communication bus.
