6233BP10930

★ ★ ★ ★ ★ Rated 4.6/5 Based on 12 ratings.

Rate your purchase of the 6233BP10930
ABB Taylor Mod 300 | 623 624 Series | 6233BP10930 | Image

SKU 2178234  UPC 050045414515

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Other Available Revisions for the 6233BP10930 6233BP10930A6233BP10930B6233BP10930C6233BP10930D6233BP10930E6233BP10930F6233BP10930G6233BP10930H6233BP10930I6233BP10930J6233BP10930K6233BP10930L6233BP10930M6233BP10930N6233BP10930O6233BP10930P6233BP10930Q6233BP10930R6233BP10930S6233BP10930T6233BP10930U6233BP10930V6233BP10930W6233BP10930X6233BP10930Y6233BP10930Z

Common misspellings:
  • 62338P10930
  • 6233BPl0930
  • 6233BP1o930
  • 6233BP1093o
  • 6233BP10930

Terminal Assembly for 6233BP10910

Technical Information

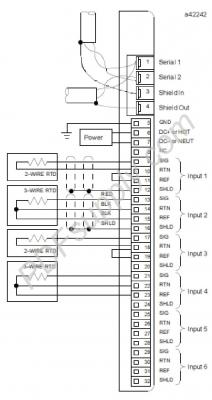

The 6233BP10930 terminal assembly has been designed and manufactured by GE Fanuc as the terminal assembly for the 6233BP10910 I/O block that is also designed and manufactured by GE Fanuc. The 6233BP10930 terminal assembly is made to connect to a compatible electronic assembly to form a complete RTD or Resistive Temperature Detector input block (the 6233BP10910 input block). The RTD input block monitors the temperature data that it receives from the RTD devices. This input block has 6 input circuits that are divided up into 3 pairs. The group to group isolation rating for this block is 300 volts, and each of the 6 inputs can work with nickel, copper, or platinum RTDs.



The GE Fanuc 6233BP10930 terminal assembly and the whole GE Fanuc 6233BP10910 RTD input block are compatible with the GE QBIM modules and PCIM modules. The RTD block and its components are pre-calibrated at the factory, and it is not necessary for the operators to re-calibrate them during the installation process. The RTD block has several programmable features which include the RTD resistance rating, the linearization, the alarm thresholds, the input filter time, and the alphatype settings. It also has multiple diagnostics that can detect different installation and operating errors such as high and low input levels, input shorts, internal faults, wiring errors, open wires, and overrange and underrange situations. The RTD input block and its components, including the 6233BP10930 terminal assembly, can operate at temperatures of 0 to 60 degrees Celsius and they can be stored at temperatures of -40 to 100 degrees Celsius.
