6233BP10920

★ ★ ★ ★ ★ Rated 4.4/5 Based on 3 ratings.

Rate your purchase of the 6233BP10920

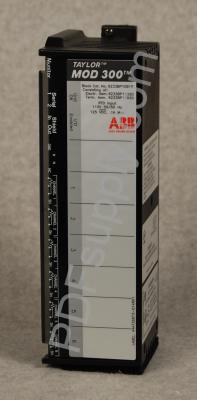

ABB Taylor Mod 300 | 623 624 Series | 6233BP10920 | Image

SKU 2175169  UPC 0880188346301

All product names, trademarks, brands and logos used on this site are the property of their respective owners. PDF Supply is not an authorized distributor, reseller or representative of the products featured on this website. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to in indicate any affiliation with or authorization by any rights holder.

PDF Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with PDF Supply's 1-year, 2-year, or 3-year warranty.

Other Available Revisions for the 6233BP10920 6233BP10920A6233BP10920B6233BP10920C6233BP10920D6233BP10920E6233BP10920F6233BP10920G6233BP10920H6233BP10920I6233BP10920J6233BP10920K6233BP10920L6233BP10920M6233BP10920N6233BP10920O6233BP10920P6233BP10920Q6233BP10920R6233BP10920S6233BP10920T6233BP10920U6233BP10920V6233BP10920W6233BP10920X6233BP10920Y6233BP10920Z

Common misspellings:
  • 62338P10920
  • 6233BPl0920
  • 6233BP1o920
  • 6233BP1092o
  • 6233BP10920

Electronic Assembly for 6233BP10910

Technical Information

The 6233BP10920 assembly is manufactured by GE Fanuc to be the electronics assembly for an RTD input block. More specifically, the GE Fanuc 6233BP10920 electronics assembly is manufactured to be part of the GE Fanuc 6233BP10910 RTD input block, and the 6233BP10920 electronics assembly connects to the GE Fanuc 6233BP10930 terminal assembly to form the complete RTD input block. The complete block composed of the connected electronic and terminal assemblies weighs 4 pounds or 1.8 kilograms, measures 8.83 x 3.5 x 3.94 inches or 22.44 x 8.89 x 10 centimeters, and dissipates up to 7 Watts of energy as heat. The block to block isolation rating is 1500 Volts and the group to group isolation rating is 300 Volts.



The GE Fanuc 6233BP10920 electronic assembly and the RTD input block can operate normally in a temperature range of 32 to 140 degrees Fahrenheit or 0 to 60 degrees Celsius and they can be stored safely at temperatures between -40 and 212 degrees Fahrenheit or -40 and 100 degrees Celsius. The 6233BP10920 electronic assembly can tolerate 5 to 95% relative humidity in both operation and storage as long as the humidity does not condense. It is compatible with the PCIM and QBIM devices from GE Fanuc and with version 3.5 or later of the GE Fanuc IC660HHM501D hand held monitor. The RTD input block that the 6233BP10920 electronic assembly is part of supports several diagnostics features for each of its inputs such as open wire and input short diagnostics, and these diagnostics features can be enabled or disabled separately for each individual circuit.
